ColorConnex® is a patented system that uses color matching of couplers and plugs among the standard pneumatic interchanges. The color-coded connectors enable quick pairing of couplers and plugs. They can also be used for dedicated hose applications to ensure that a lubricated line is never used for a dry line application, preventing cross-contamination.
- Steel & aircraft aluminum fittings
- 1/4" NPT connections & body size
- For ARO interchange use (Type B)
- Max. input pressure: 300 psi
- Temperature range: -40°F to 250°F

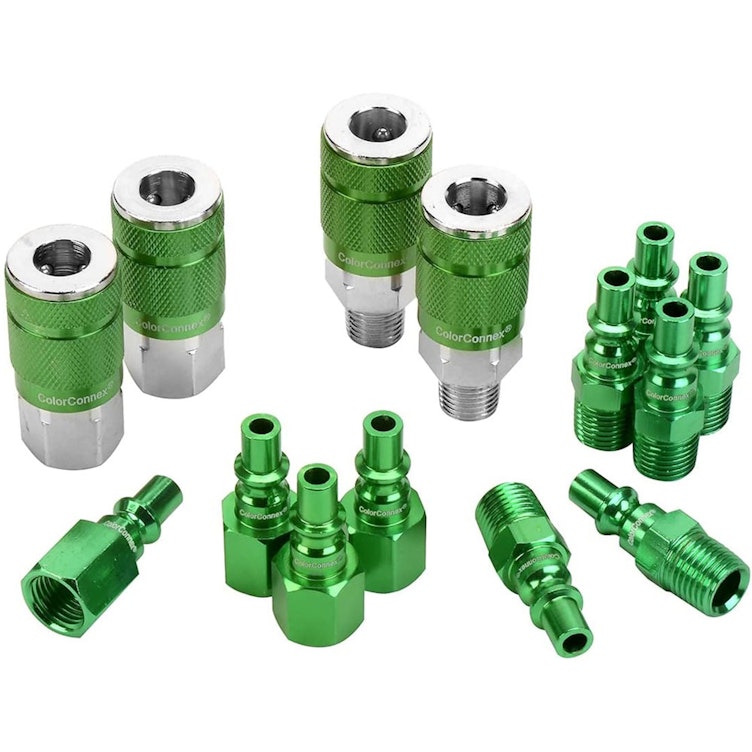

- 14-piece kit includes (2) FNPT couplers, (2) MNPT couplers, (4) FNPT plugs & (6) MNPT plugs
