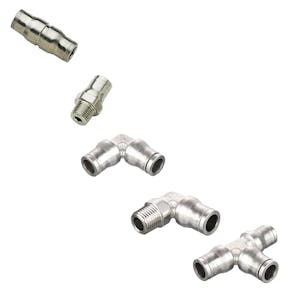

Parker Brass Compress-Align® Fittings

Compress-Align fittings require no flaring, soldering, or other preparation of tubing. The captive sleeve orients for correct installation, visible for inspection before and after installation. The fittings are universal in markets like industrial, packaging, pneumatic, printing, and chemical. Applications include airlines, lubrication lines, fluid transfer, chemical dispensing, cooling lines, and machine tools. Assembly Instructions: With nut finger tight on the body, insert the tubing until it bottoms in the fitting. Complete the seal with one wrench turn on all sizes.

Brass fitting & nut
Captive sleeve
Use with copper, aluminum, TFE, FEA, PFA & thermoplastic tubing
UL listed for flammable liquids
For water, air, inert & non-combustible gasses
NPTF thread
Pressure ratings: 2,800 psi (1/8"), 1,900 psi (3/16"), 1,400 psi (1/4"), 1,000 psi (3/8") & 750 ps
Temperatures range: -65°F to 250°F

Item #	Description	Catalog Pg.	Price
Item 61794	1/2" Tube x 1/2" FPT Brass Compress-Align® Female Connector 21.32/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	21.32/Each In Stock
Item 61798	1/2" Tube x 1/2" MPT Brass Compress-Align® Male Connector 12.08/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	12.08/Each In Stock
Item 61802	1/2" Tube x 1/2" MPT Brass Compress-Align® Male Elbow 18.96/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	18.96/Each In Stock
Item 61790	1/2" Tube x 1/2" Tube Brass Compress-Align® Union 15.88/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	15.88/Each In Stock
Item 61811	1/2" Tube x 1/2" Tube Brass Compress-Align® Union Elbow 28.19/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	28.19/Each In Stock
Item 61806	1/2" Tube x 1/2" Tube x 1/2" Tube Brass Compress-Align® Union Tee 36.01/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	36.01/Each In Stock
Item 61792	1/4" Tube x 1/4" FPT Brass Compress-Align® Female Connector 7.72/Each Special Order Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	7.72/Each Special Order
Item 61815	1/4" Tube x 1/4" MPT Brass Compress-Align® 45° Elbow 24.4/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	24.4/Each In Stock
Item 61796	1/4" Tube x 1/4" MPT Brass Compress-Align® Male Connector 4.96/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	4.96/Each In Stock
Item 61800	1/4" Tube x 1/4" MPT Brass Compress-Align® Male Elbow 6.91/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	6.91/Each In Stock
Item 61788	1/4" Tube x 1/4" Tube Brass Compress-Align® Union 6.21/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	6.21/Each In Stock
Item 61809	1/4" Tube x 1/4" Tube Brass Compress-Align® Union Elbow 7.98/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	7.98/Each In Stock
Item 61813	1/4" Tube x 1/4" Tube x 1/4" MPT Brass Compress-Align® Male Branch Tee 14.34/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	14.34/Each In Stock
Item 61804	1/4" Tube x 1/4" Tube x 1/4" Tube Brass Compress-Align® Union Tee 12.25/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	12.25/Each In Stock
Item 61791	1/8" Tube x 1/8" FPT Brass Compress-Align® Female Connector 5.73/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	5.73/Each In Stock
Item 61795	1/8" Tube x 1/8" MPT Brass Compress-Align® Male Connector 4.57/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	4.57/Each In Stock
Item 61799	1/8" Tube x 1/8" MPT Brass Compress-Align® Male Elbow 6.29/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	6.29/Each In Stock
Item 61787	1/8" Tube x 1/8" Tube Brass Compress-Align® Union 6/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	6/Each In Stock
Item 61807	1/8" Tube x 1/8" Tube Brass Compress-Align® Union Elbow 17.15/Each Special Order Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	17.15/Each Special Order
Item 61812	1/8" Tube x 1/8" Tube x 1/8" MPT Brass Compress-Align® Male Branch Tee 19.12/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	19.12/Each In Stock
Item 61803	1/8" Tube x 1/8" Tube x 1/8" Tube Brass Compress-Align® Union Tee 18.59/Each Special Order Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	18.59/Each Special Order
Item 61808	3/16" Tube x 3/16" Tube Brass Compress-Align® Union Elbow 12.36/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	12.36/Each In Stock
Item 61793	3/8" Tube x 3/8" FPT Brass Compress-Align® Female Connector 13.67/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	13.67/Each In Stock
Item 61816	3/8" Tube x 3/8" MPT Brass Compress-Align® 45° Elbow 29.55/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	29.55/Each In Stock
Item 61797	3/8" Tube x 3/8" MPT Brass Compress-Align® Male Connector 7.31/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	7.31/Each In Stock
Item 61801	3/8" Tube x 3/8" MPT Brass Compress-Align® Male Elbow 11.12/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	11.12/Each In Stock
Item 61789	3/8" Tube x 3/8" Tube Brass Compress-Align® Union 9.37/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	9.37/Each In Stock
Item 61810	3/8" Tube x 3/8" Tube Brass Compress-Align® Union Elbow 12.14/Each Special Order Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	12.14/Each Special Order
Item 61814	3/8" Tube x 3/8" Tube x 3/8" MPT Brass Compress-Align® Male Branch Tee 22.51/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	22.51/Each In Stock
Item 61805	3/8" Tube x 3/8" Tube x 3/8" Tube Brass Compress-Align® Union Tee 17.41/Each In Stock Save 5% when you buy 10+ Save 10% when you buy 20+ Save 15% when you buy 60+	Internet Only	17.41/Each In Stock

Note: Product testing for individual applications is recommended before use. U.S. Plastic Corp. cannot be held liable for individual application failures.
