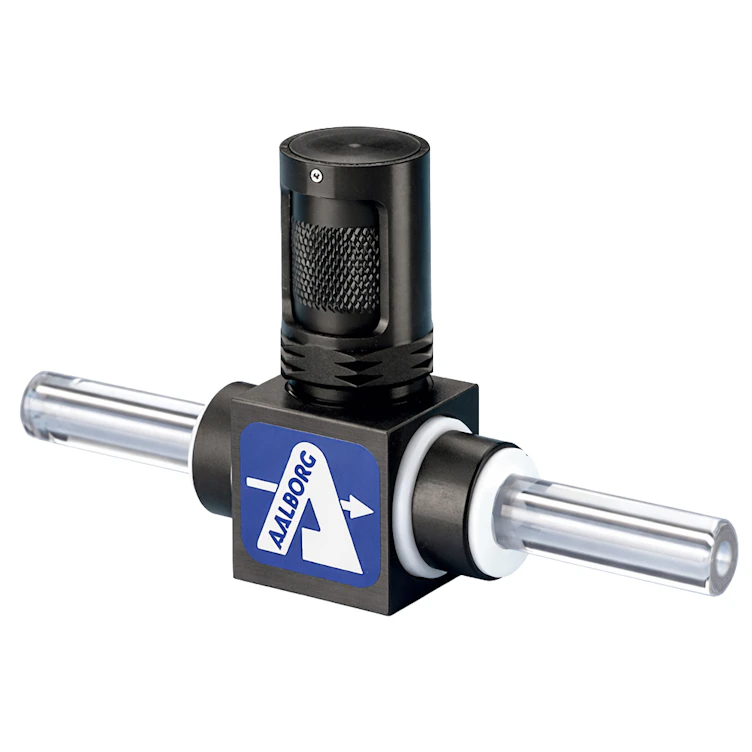

These metering needle valves are designed for precise regulation of corrosive gases and liquids in laboratory and industrial applications. The pliant PTFE body is reinforced by a structurally rigid metal shell for added strength, while fluid contact is limited to PTFE and PEEK materials to maintain chemical compatibility. MVT™ valves feature a non-rising stem design and an integrated safety handle that prevents over-tightening while allowing fine, controlled adjustment. Suitable for pressure or non-critical vacuum service, they also provide bubble-tight shutoff for reliable system control.
- PTFE body & O-ring; PEEK spindle
- Anodized aluminum outer shell & handle
- Wetted inner parts are PTFE & PEEK only; Non-wetted structurally rigid metal shell
- Bubble-tight shutoff; Eight turns to full open
- Non-rising stem for stable metering control; Safety handle prevents over-tightening
- Orifice: 0.125"; Dimensions: 4.7" L x 1" W x 2.375" Hgt.
- Max. working pressure: 75 psi
- Max. temperature: 150°F
- Max. flow: 600mL/min. (Air) & 36mL/min. (Water)
- Flow coefficient (Cv): 0.003
