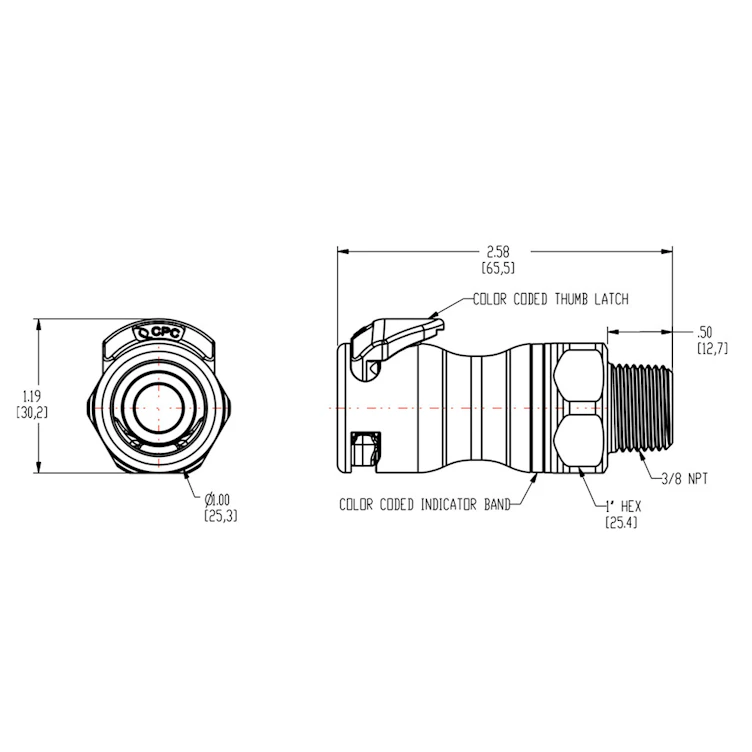

3/8" MNPT LQ6 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately)
3/8" MNPT LQ6 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately)

3/8" MNPT LQ6 Chrome-Plated Brass Valved Body - Blue (Insert Sold Separately)

Item 62371
134.08/Each

This item is not currently available. Please check back later or sign up below to be notified when it is back in stock. You may also fill out our Product Assistance form for an availability estimate.

Overview

The LQ6 Series couplings' closed-system design provides ultra-reliable, dripless connections and disconnections. The first of their kind, the couplings utilize valve technology specifically designed for liquid cooling applications. The non-spill design allows disrupted flow under pressure with no spills—redundant sealing when connected adds extra protection from leaks. Red and blue color-coding provides visual differences in cooling lines. No seal friction in a connected state allows ultra-reliable protection from drips at disconnect, even after long periods in a connected state. The ruggedness of these couplings makes them able to withstand long-term use. Rotation of these couplings allows movement, which eliminates tube kinking.

  • Chrome-plated brass main housing
  • Polysulfone valve & thumb latch
  • 302 SS valve spring & external spring
  • EPDM seals
  • Lubricated with Krytox® PFPE
  • Spillage per disconnect: 0.05 cc at 0 psi, 0.125 cc at 120 psi
  • Inclusion: 0.42 cc per connect
  • Maximum flow at disconnect: 4 gallon/minute
  • Pressure rating: vacuum to 120 psi, 8.3 bar
  • Temperature range: 0°F to 240°F

Item Information

Item Number: 62371
Catalog Page Number: P-278
Manufacturer: CPC™
Manufacturer Part #: LQ6D10006BLU
Country of Origin: USA

Tech Specs

Size: 3/8"
Configuration: MNPT Quick Disconnect
Material: Chrome-plated Brass
Weight: 0.255 lbs
