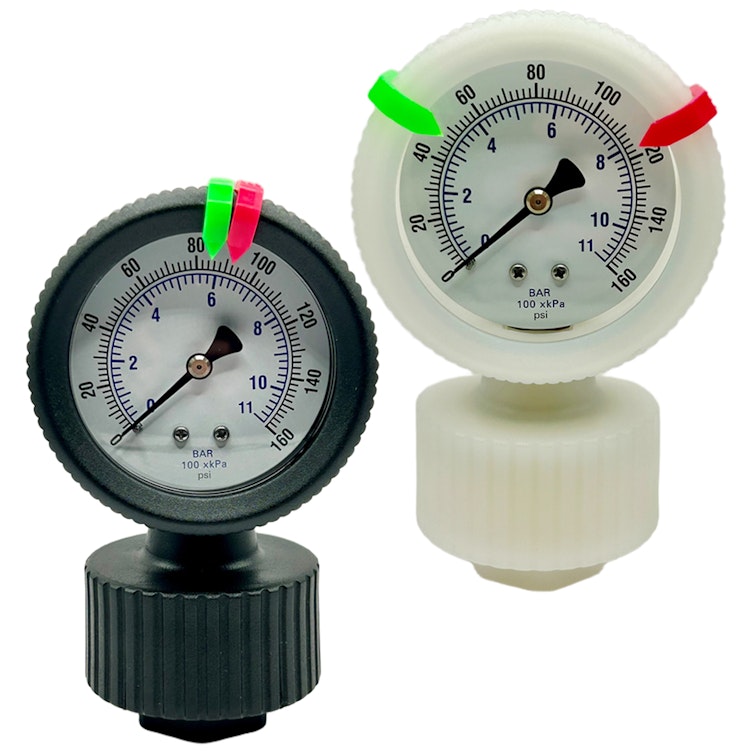

One-Piece Molded Pressure Gauge & Seal Assemblies

This pressure gauge and diaphragm seal assembly is engineered for use in corrosive and caustic environments. Its fully molded, one-piece construction ensures a tamper-resistant design while protecting against chemical and mechanical stress. Built for demanding industrial conditions, these gauges deliver exceptional durability and reliable pressure measurement performance.

Polypropylene or PVDF case
FKM or PTFE diaphragm
Polycarbonate lens; Removable bezel
Black aluminum pointer; Range tabs - red & green
Dry fill
1/2" FNPT lower mount connection
2-1-2% accuracy
Large 2-1/2" display
Temperature range: -4°F to 140°F

Item #	Description	Catalog Pg.	Price
Item 97796	White PVDF One-Piece Molded Pressure Gauge with PTFE Diaphragm - 0 to 15 psi Range 250/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	250/Each Drop Ship
Item 97797	White PVDF One-Piece Molded Pressure Gauge with PTFE Diaphragm - 0 to 30 psi Range 250/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	250/Each Drop Ship
Item 97798	White PVDF One-Piece Molded Pressure Gauge with PTFE Diaphragm - 0 to 60 psi Range 250/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	250/Each Drop Ship
Item 97799	White PVDF One-Piece Molded Pressure Gauge with PTFE Diaphragm - 0 to 100 psi Range 250/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	250/Each Drop Ship
Item 97800	White PVDF One-Piece Molded Pressure Gauge with PTFE Diaphragm - 0 to 160 psi Range 250/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	250/Each Drop Ship
Item 97801	White PVDF One-Piece Molded Pressure Gauge with PTFE Diaphragm - 0 to 200 psi Range 250/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	250/Each Drop Ship
Item 97790	Black Polypropylene One-Piece Molded Pressure Gauge with FKM Diaphragm - 0 to 15 psi Range 64.81/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	64.81/Each Drop Ship
Item 97791	Black Polypropylene One-Piece Molded Pressure Gauge with FKM Diaphragm - 0 to 30 psi Range 64.81/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	64.81/Each Drop Ship
Item 97792	Black Polypropylene One-Piece Molded Pressure Gauge with FKM Diaphragm - 0 to 60 psi Range 64.81/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	64.81/Each Drop Ship
Item 97793	Black Polypropylene One-Piece Molded Pressure Gauge with FKM Diaphragm - 0 to 100 psi Range 64.81/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	64.81/Each Drop Ship
Item 97794	Black Polypropylene One-Piece Molded Pressure Gauge with FKM Diaphragm - 0 to 160 psi Range 64.81/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	64.81/Each Drop Ship
Item 97795	Black Polypropylene One-Piece Molded Pressure Gauge with FKM Diaphragm - 0 to 200 psi Range 64.81/Each Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	NEW	64.81/Each Drop Ship
