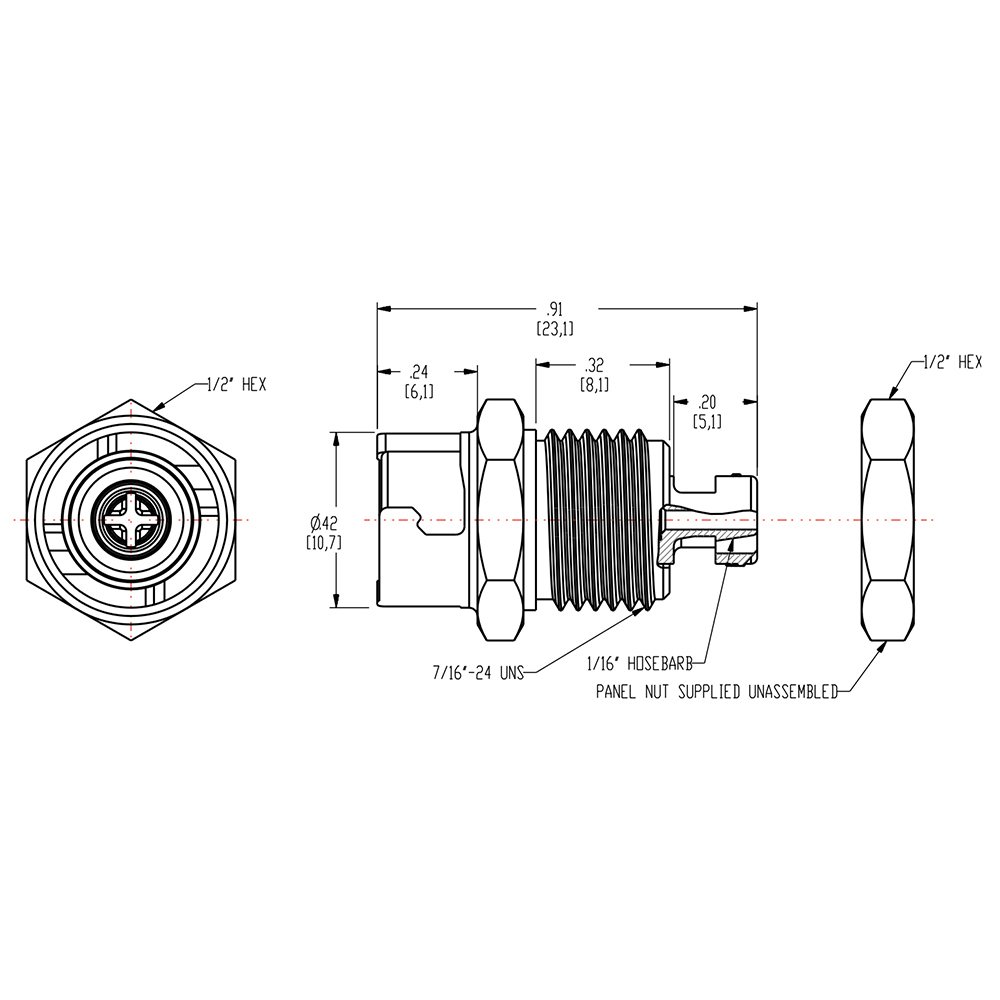

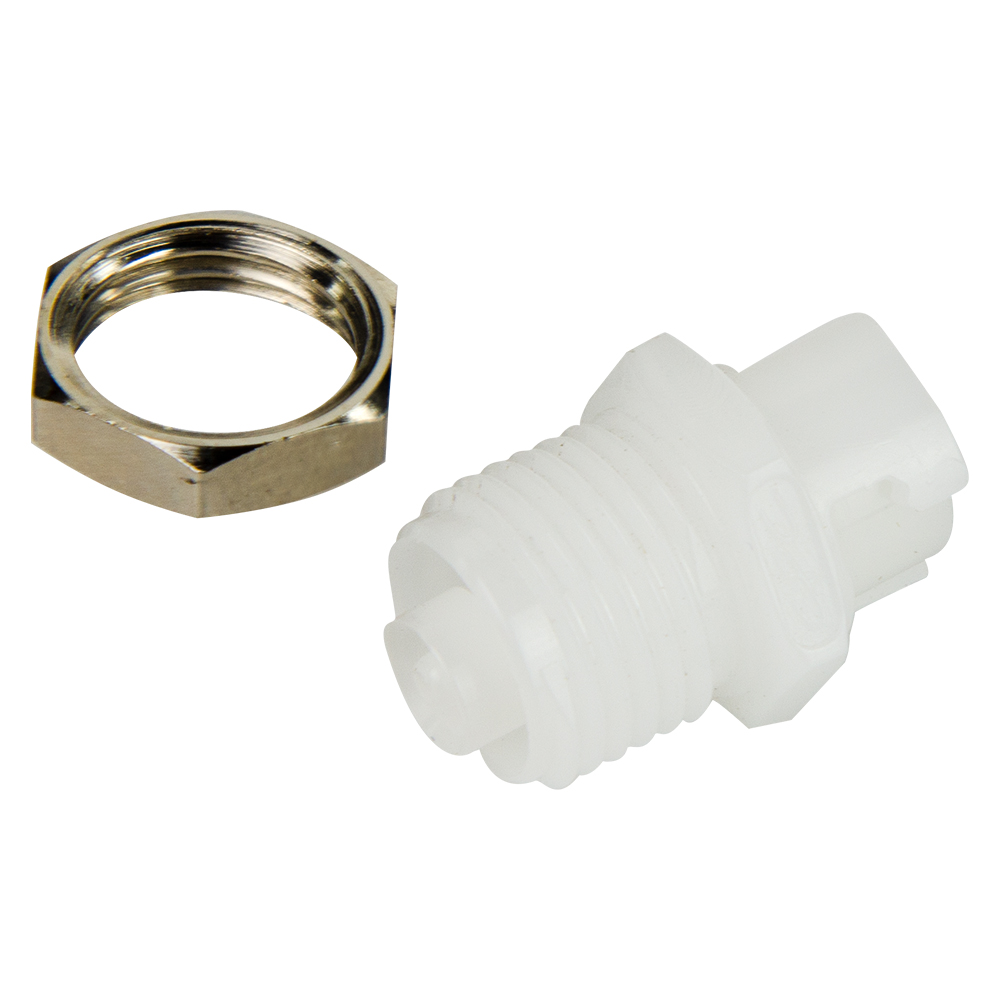

1/16" Hose Barb SMC Series Subminiature Acetal Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

1/16" Hose Barb SMC Series Subminiature Acetal Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

1/16" Hose Barb SMC Series Subminiature Acetal Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

1/16" Hose Barb SMC Series Subminiature Acetal Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)

Item 64185

Out of Stock (On Order)

4.87/Each

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Add to Cart Get Notified

Buy in Quantity & Save!

5% off at 25+	4.6265/Each
10% off at 50+	4.383/Each
15% off at 150+	4.1395/Each

Overview

These twist-to-connect couplings provide a reliable and more secure alternative to luer-type connections. They also allow for the tubing to rotate freely when connected. This important feature prevents both kinked tubing and accidental disconnection during use. NOTE: Bodies and insert sold separately unless marked as "Coupling Set". Hose barbs fittings are measured by tubing ID.

Acetal main components
Acetal locking sleeves
Non-valved
316 SS valve spring
Buna-N O-rings
Free coupling rotation eliminates kinked tubing
Pressure rating: vacuum to 100 psi, 6.9 bar
Acetal temperature range: -40°F to 180°F (-40°C to 82°C)

Item Information

Item Number: 64185

Catalog Page Number: P-269

Manufacturer: CPC™

Manufacturer Part #: SMFPM01

Country of Origin: USA

Tech Specs

Size: 1/16"

Configuration: Hose Barb Quick Disconnect

Material: Acetal

Weight: 0.006 lbs

PDF:Chemical Chart

PDF: SMC Spec Sheet
