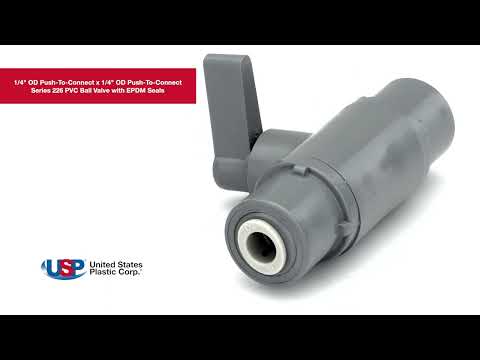

1/4" OD Push-To-Connect x 1/4" OD Push-To-Connect Gray PVC Series 226 Two-Way Ball Valve with EPDM Seals

360 Video

1/4" OD Push-To-Connect x 1/4" OD Push-To-Connect Gray PVC Series 226 Two-Way Ball Valve with EPDM Seals

Item 22287

14.43/Each

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Add to Cart Get Notified

Buy in Quantity & Save!

5% off at 12+	13.7085/Each
10% off at 24+	12.987/Each
15% off at 72+	12.2655/Each

Overview

The 226 Series Two-Way Ball Valve features a versatile design that allows multiple configurations to match specific application requirements. It supports flow and pressure in either direction, and the handle aligns over the inlet port when the valve is in the open position for easy visual confirmation.

PVC ball & valve
EPDM seals
Good chemical resistance
Flag handle
Not for vacuum
Supports flow & pressure in either direction
0.312" diameter through hole in ball
Dimensions: 3-1/4" L x 1-5/8" Hgt.
Maximum pressure: 125 psi; Maximum temperature: 140°F
NSF/ANSI/CAN 42 listed

Videos

360 Video

Item Information

Item Number: 22287

Catalog Page Number: P-516

Manufacturer: SMC

Manufacturer Part #: 6883190

Country of Origin: USA

Tech Specs

Size: 1/4"

Material: PVC

Seal: EPDM

Connection: Push-to-Connect

Weight: 0.065 lbs

PDF:Drawing

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product testing for individual applications is recommended before use. U.S. Plastic Corp. cannot be held liable for individual application failures.
