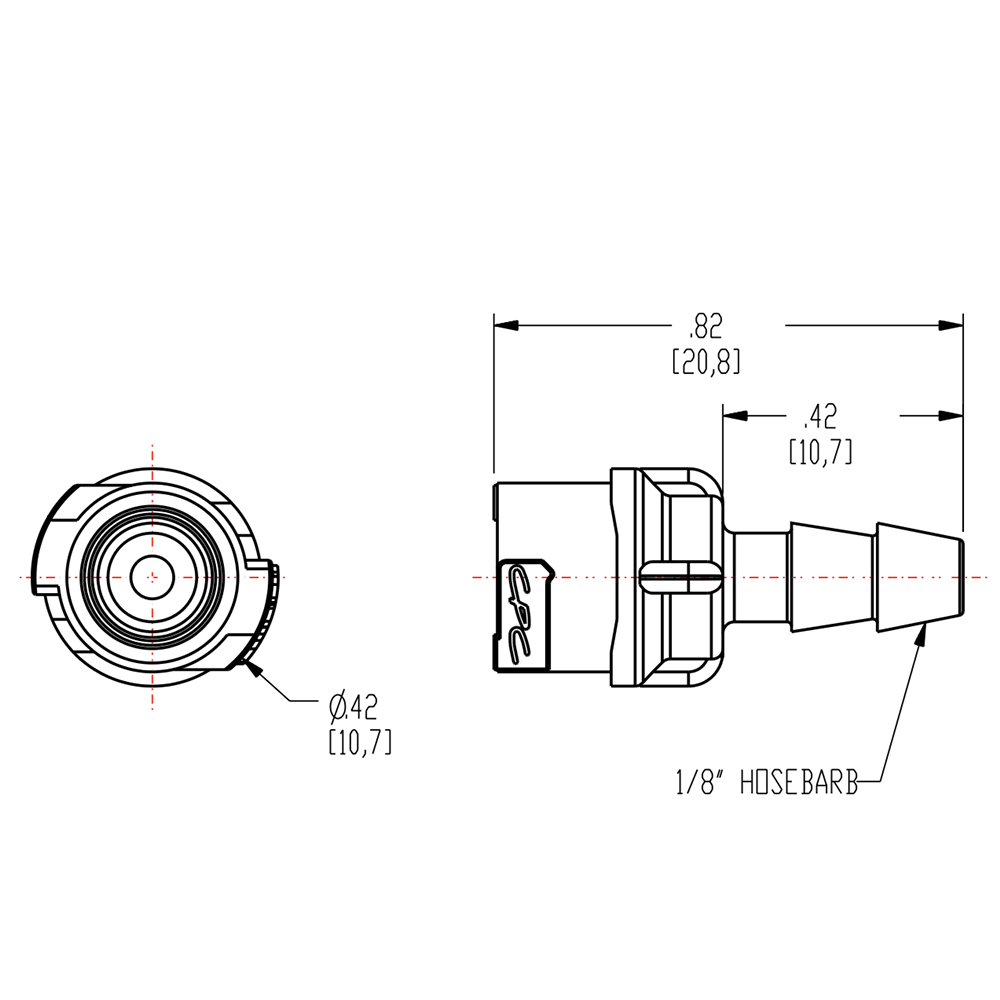

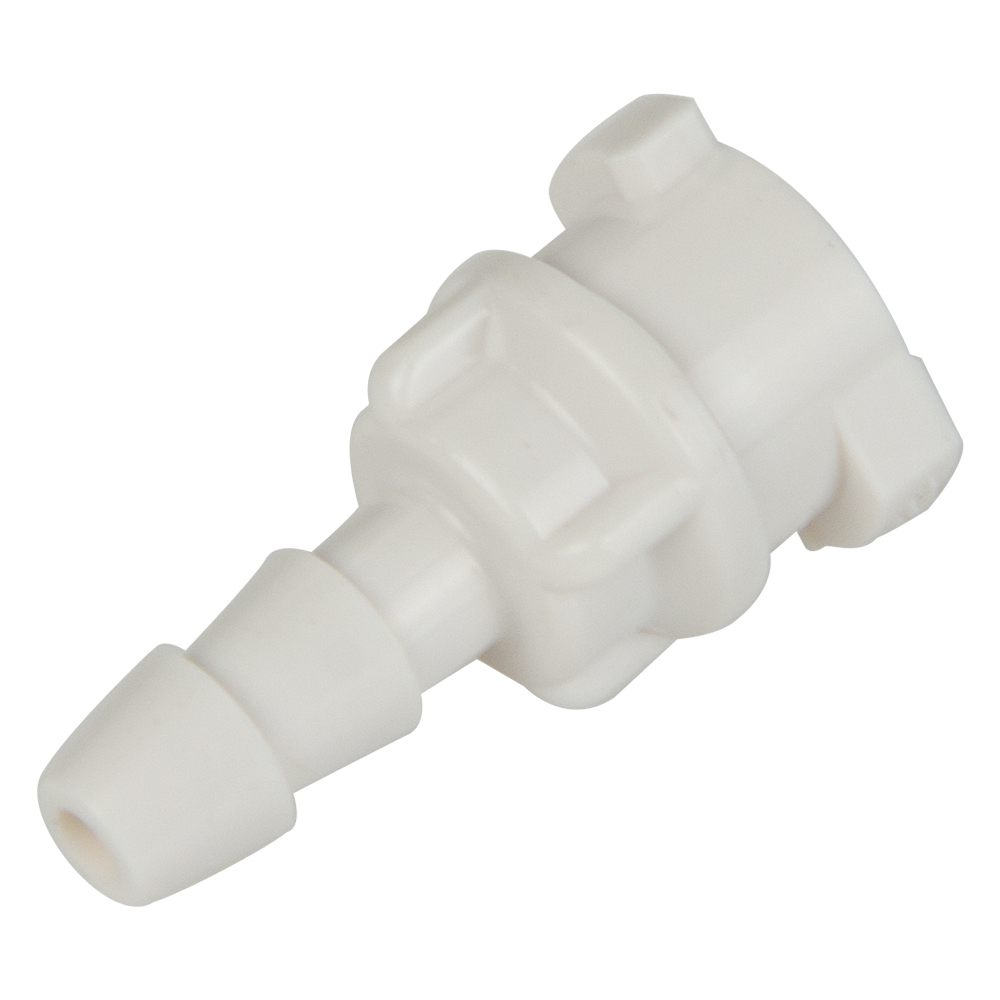

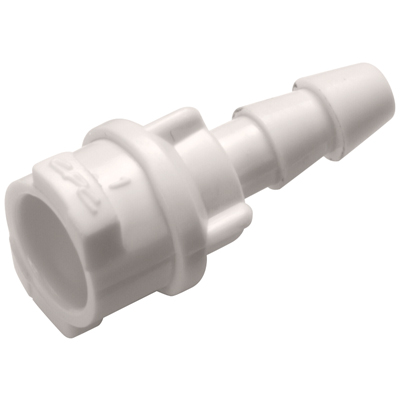

1/8" Hose Barb SMC Series Subminiature ABS In-Line Coupling Body - Straight Thru (Insert Sold Separately)

1/8" Hose Barb SMC Series Subminiature ABS In-Line Coupling Body - Straight Thru (Insert Sold Separately)

1/8" Hose Barb SMC Series Subminiature ABS In-Line Coupling Body - Straight Thru (Insert Sold Separately)

1/8" Hose Barb SMC Series Subminiature ABS In-Line Coupling Body - Straight Thru (Insert Sold Separately)

1/8" Hose Barb SMC Series Subminiature ABS In-Line Coupling Body - Straight Thru (Insert Sold Separately)

Item 65254

0.5/Each

Add to Cart

Buy in Quantity & Save!

5% off at 25+	0.475/Each
10% off at 50+	0.45/Each
15% off at 150+	0.425/Each

Overview

These twist-to-connect couplings provide a reliable and more secure alternative to luer-type connections. They also allow for the tubing to rotate freely when connected. This important feature prevents both kinked tubing and accidental disconnection during use. Available in three sizes with either straight thru or shutoff flow. NOTE: Bodies and insert sold separately unless marked as "Coupling Set". Hose barbs fittings are measured by tubing ID. ABS coupling bodies are designed to be disposable.

ABS main components
Acetal locking sleeves
Non-valved
316 SS valve spring
Buna-N O-rings
Free coupling rotation eliminates kinked tubing
Pressure rating: vacuum to 100 psi, 6.9 bar
ABS temperature range: -40°F to 160°F (-40°C to 71°C)

Item Information

Item Number: 65254

Catalog Page Number: P-269

Manufacturer: CPC™

Manufacturer Part #: SMF10297

Country of Origin: USA

Tech Specs

Size: 1/8"

Configuration: In-Line Hose Barb Quick Disconnect

Material: ABS

Weight: 0.001 lbs

PDF:Chemical Chart

PDF: SMC Spec Sheet
