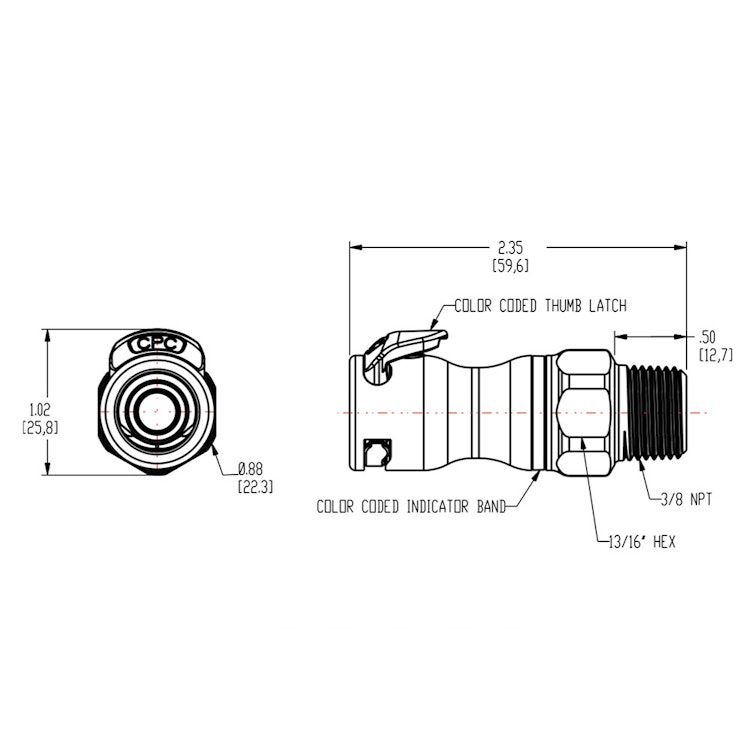

3/8" NPT LQ4 Chrome Plated Brass Valve Body - Red

Item #: 62615
In Stock
$54.90/Each

Buy in Quantity & Save!

2-4$52.16Save 5%
5-14$49.41Save 10%
15+$46.67Save 15%

Overview

LQ4 Series quick disconnect couplings provide ultra reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, LQ4 utilizes patent-pending valve technology that eliminates drips and is able to withstand long-term use. The non-spill design allows disconnection under pressure with no spills. Redundant sealing when connected adds extra protection from leaks. Red and blue color coding provides visual differences in cooling lines. No seal friction in connected state allows ultra-reliable protection from drips at disconnect even after long periods in connected state. The ruggedness of these couplings makes them able to withstand long-term use. Rotation of these couplings allows movement which eliminates tube kinking.

  • Chrome-plated brass main housing
  • Polysulfone valve & thumb latch
  • SS valve spring & external spring
  • EPDM seals
  • Lubricated with Krytox® PFPE
  • Spillage per disconnect: 0.025 cc at 0 psi, 0.055 cc at 120 psi
  • Inclusion: 0.025 cc per connect
  • Maximum flow at disconnect: 3 gallon/minute
  • Pressure rating: vacuum to 120 psi, 8.3 bar
  • Temperature range: 0°F to 240°F

Item Information

Item Number:62615
Catalog Page Number:P-199
Weight:0.164
Manufacturer:CPC™
Manufacturer Part #:LQ4D10006RED

Tech Specs
