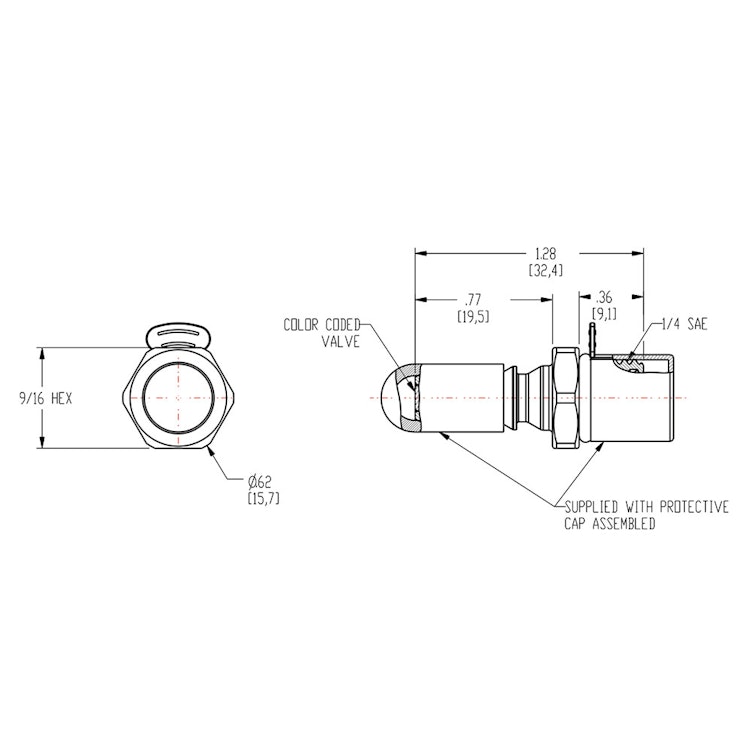

1/4 SAE-04 LQ2 Chrome-Plated Brass Valve Insert - Blue

Item #: 62654
In Stock
$19.37/Each

Buy in Quantity & Save!

2-4$18.40Save 5%
5-14$17.43Save 10%
15+$16.46Save 15%

Overview

LQ2 Series quick disconnect couplings provide ultra reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, LQ2 utilizes patent-pending valve technology that eliminates drips and is able to withstand long-term use. Red and blue color coding provides visual differences in cooling lines. They offer a high flow capacity for cost effective fluid handling. Redundant sealing when connected adds extra protection from leaks. The locking hose barb offers a quality connection with reinforced tubing used in liquid cooling applications.

  • Chrome-plated brass main housing
  • Polysulfone valve & thumb latch
  • SS valve spring & external spring
  • EPDM seals
  • Lubricated with Krytox® PFPE
  • Spillage per disconnect: <0.015 cc at 0 psi, <0.063 cc at 200 psi
  • Inclusion: <0.063 cc per connect
  • Maximum flow at disconnect: 1 gallon/minute @ 0 - 100 psi & .25 gallon/minute @ 101 - 200 psi
  • Pressure rating: vacuum to 200 psi, 13.8 bar
  • Temperature range: 0°F to 240°F

Item Information

Item Number:62654
Catalog Page Number:P-198
Weight:0.029
Manufacturer:CPC™
Manufacturer Part #:LQ2D4604BLU

Tech Specs
