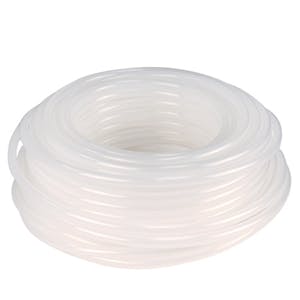

0.170" ID x 1/4" OD x 0.040" Wall Natural HDPE NSF 51/61 Tubing - 100' Roll

0.170" ID x 1/4" OD x 0.040" Wall Natural HDPE NSF 51/61 Tubing - 100' Roll

Item 58792
In Stock
12.4/100' Roll

Buy in Quantity & Save!

5% off at 5+11.78/100' Roll
10% off at 10+11.16/100' Roll
15% off at 30+10.54/100' Roll

Overview

HDPE tubing is an economical option for many general purposes, including air, water, and chemical transfer lines. Although less flexible than LLDPE tubing, it has higher pressure and abrasion resistance than its LLDPE counterpart.

  • HDPE
  • Uses compression fittings
  • Extreme resistance to acids & alkalis; Flexible, odorless, tasteless & non-toxic
  • Can be sterilized by boiling
  • Durometer hardness (Shore D): 65
  • Brittleness temperature: -103°F; Vicat softening point: 257°F
  • Tensile strength: 4500 psi; Elongation at break: 900%
  • Working pressure at 70°F: 260 psi
  • Meets FDA standards & is NSF 51/61 listed
  • Sold in full 100' rolls only

Item Information

Item Number: 58792
Catalog Page Number: P-184
Manufacturer: Hudson Extrusions
Manufacturer Part #: HDPE.17X.25 NSF
Country of Origin: USA

Tech Specs

Material: HDPE
Color: Natural
OD: 1/4"/0.250"
Wall: 0.040"
ID: 0.170"
Weight: 1.155 lbs

More in This Group

0.170" ID x 1/4" OD x 0.04" Wall Natural HDPE Tubing - 100' Roll
0.170" ID x 1/4" OD x 0.04" Wall Natural HDPE Tubing - 100' Roll
Shop Now

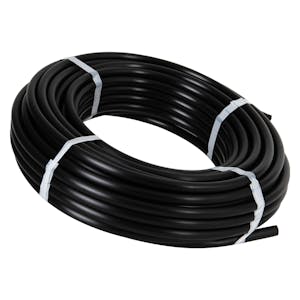

 0.170" ID x 1/4" OD x 0.04" Wall Black HDPE Tubing - 100' Roll
0.170" ID x 1/4" OD x 0.04" Wall Black HDPE Tubing - 100' Roll
Shop Now
 0.170" ID x 1/4" OD x 0.040" Wall Black HDPE NSF 51/61 Tubing - 100' Roll
0.170" ID x 1/4" OD x 0.040" Wall Black HDPE NSF 51/61 Tubing - 100' Roll
Shop Now
 1/8" ID x 1/4" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
1/8" ID x 1/4" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 1/4" ID x 3/8" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
1/4" ID x 3/8" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 1/4" ID x 3/8" OD x 1/16" Wall Black HDPE Tubing - 100' Roll
1/4" ID x 3/8" OD x 1/16" Wall Black HDPE Tubing - 100' Roll
Shop Now
 1/4" ID x 3/8" OD x 1/16" Wall Natural HDPE NSF 51/61 Tubing - 100' Roll
1/4" ID x 3/8" OD x 1/16" Wall Natural HDPE NSF 51/61 Tubing - 100' Roll
Shop Now
 1/4" ID x 3/8" OD x 1/16" Wall Black HDPE NSF 51/61 Tubing - 100' Roll
1/4" ID x 3/8" OD x 1/16" Wall Black HDPE NSF 51/61 Tubing - 100' Roll
Shop Now
 3/16" ID x 5/16" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
3/16" ID x 5/16" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 3/8" ID x 1/2" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
3/8" ID x 1/2" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 3/8" ID x 1/2" OD x 1/16" Wall Black HDPE Tubing - 100' Roll
3/8" ID x 1/2" OD x 1/16" Wall Black HDPE Tubing - 100' Roll
Shop Now
 3/8" ID x 1/2" OD x 1/16" Wall Natural HDPE NSF 51/61 Tubing - 100' Roll
3/8" ID x 1/2" OD x 1/16" Wall Natural HDPE NSF 51/61 Tubing - 100' Roll
Shop Now
 3/8" ID x 1/2" OD x 1/16" Wall Black HDPE NSF 51/61 Tubing - 100' Roll
3/8" ID x 1/2" OD x 1/16" Wall Black HDPE NSF 51/61 Tubing - 100' Roll
Shop Now
 1/2" ID x 5/8" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
1/2" ID x 5/8" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 1/2" ID x 5/8" OD x 1/16" Wall Black HDPE Tubing - 100' Roll
1/2" ID x 5/8" OD x 1/16" Wall Black HDPE Tubing - 100' Roll
Shop Now
 1/2" ID x 5/8" OD x 1/16" Wall Natural HDPE NSF 51/61 Tubing - 100' Roll
1/2" ID x 5/8" OD x 1/16" Wall Natural HDPE NSF 51/61 Tubing - 100' Roll
Shop Now
 1/2" ID x 5/8" OD x 1/16" Wall Black HDPE NSF 51/61 Tubing - 100' Roll
1/2" ID x 5/8" OD x 1/16" Wall Black HDPE NSF 51/61 Tubing - 100' Roll
Shop Now
 0.6" ID x 3/4" OD x 0.075" Wall Natural HDPE Tubing - 100' Roll
0.6" ID x 3/4" OD x 0.075" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 5/8" ID x 3/4" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
5/8" ID x 3/4" OD x 1/16" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 0.814" ID x 1" OD x 3/32" Wall Natural HDPE Tubing - 100' Roll
0.814" ID x 1" OD x 3/32" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 1" ID x 1-1/4" OD x 1/8" Wall Natural HDPE Tubing - 100' Roll
1" ID x 1-1/4" OD x 1/8" Wall Natural HDPE Tubing - 100' Roll
Shop Now
 1-1/4" ID x 1-1/2" OD x 1/8" Wall Natural HDPE Tubing - 100' Roll
1-1/4" ID x 1-1/2" OD x 1/8" Wall Natural HDPE Tubing - 100' Roll
Shop Now

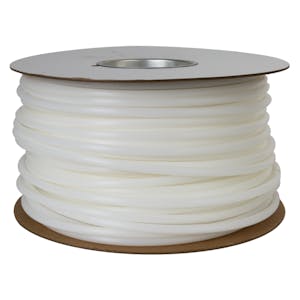

 0.170" ID x 1/4" OD x 0.04" Wall Natural HDPE Tubing - 500' Reel
