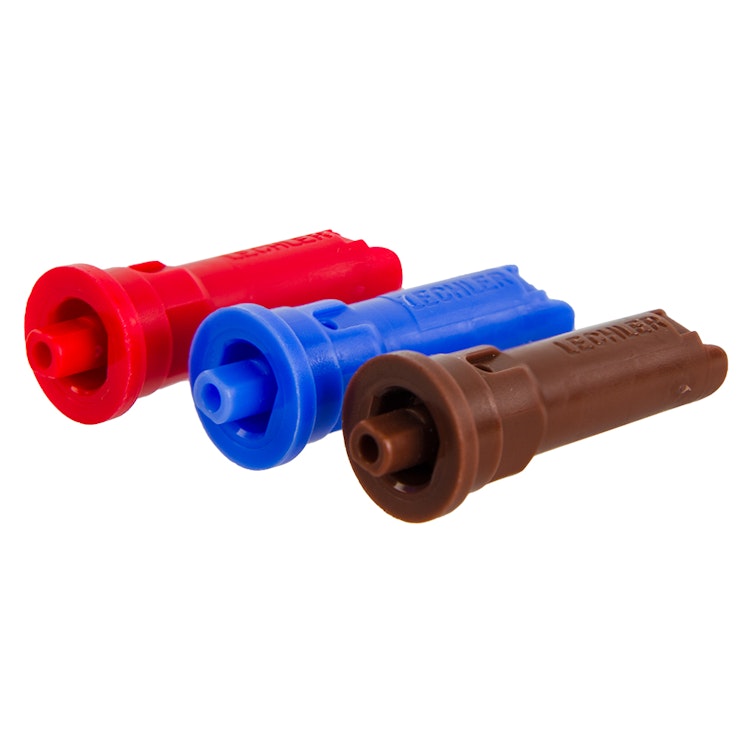

110° Air Induction Flat Spray Nozzles & Cap

These sturdy flat spray nozzles have extremely low drift potential. They are hard wearing and non-clogging with an easily removable injector for cleaning. They deliver timely application, even under adverse weather conditions. They have very good deposition structure and crop penetration. These nozzles are the ideal choice for agricultural uses and many other industries and can be used with plant protection products, growth regulators and liquid fertilizer.

  • POM
  • Dimensions: .582" OD Dia. x 1.3" OD Hgt.
  • Extremely coarse to coarse droplets
  • Spray angle: 110°
  • Increased workrate due to flexible use over a wide pressure range
  • Adaptation by changing the driving speed & GPA rate without nozzle changes
  • Pressure range: 30-115 psi
  • Long injector design ensures uniform spray & droplet pattern up to 115 psi
  • Recommended filter: 50 Mesh
  • Fits bayonet cap 69385 for proper installation onto sprayers
Stock Description Catalog Pg. Price
ISO Size 03 Blue 110° Air Induction Flat Spray Nozzle
69374
ISO Size 03 Blue 110° Air Induction Flat Spray Nozzle
$5.94​/Each
Save 5%50+$5.64/Each
Save 10%100+$5.34/Each
Save 15%300+$5.04/Each
P-205
$5.94​/Each
In Stock
ISO Size 04 Red 110° Air Induction Flat Spray Nozzle
69375
ISO Size 04 Red 110° Air Induction Flat Spray Nozzle
$5.94​/Each
Save 5%50+$5.64/Each
Save 10%100+$5.34/Each
Save 15%300+$5.04/Each
P-205
$5.94​/Each
In Stock
ISO Size 05 Brown 110° Air Induction Flat Spray Nozzle
69376
ISO Size 05 Brown 110° Air Induction Flat Spray Nozzle
$5.94​/Each
Save 5%50+$5.64/Each
Save 10%100+$5.34/Each
Save 15%300+$5.04/Each
P-205
$5.94​/Each
In Stock
Winged Bayonet Spray Cap for Spray Tip
69385
Winged Bayonet Spray Cap for Spray Tip
$1.07​/Each
Save 5%50+$1.01/Each
Save 10%100+$0.96/Each
Save 15%300+$0.91/Each
P-205
$1.07​/Each
In Stock
