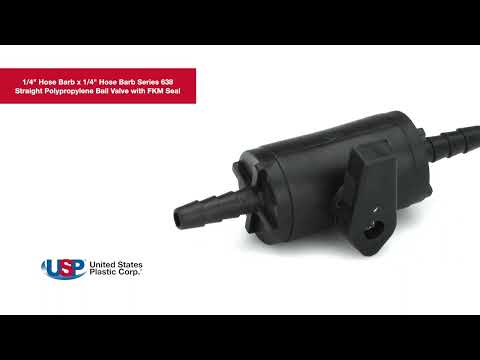

1/4" Hose Barb x 1/4" Hose Barb Series 638 Straight Polypropylene Ball Valve with FKM Seal

Item #: 22680

$6.60/Each

Buy in Quantity & Save!

12-23$6.27Save 5%
24-71$5.94Save 10%
72+$5.61Save 15%

Overview

These valves are available in multiple configurations to fit the exact end-use application. They are economical shut-off valves that offer superior quality and dependability to be used in ultra-pure water systems, photographic processing equipment, laboratory use, and more.

  • Polypropylene
  • FKM seal
  • Two-way flow, one-piece ball & stem
  • Fully ported, quarter-turn handle, with positive shut-off
  • .437" diameter through hole in ball
  • Not for vacuum
  • Maximum pressure: 125 psi
  • Maximum temperature: 140°F

Item Information

Item Number: 22680
Catalog Page Number: P-436
Manufacturer: SMC
Manufacturer Part #: 7616190

Tech Specs

Weight: 0.042 lbs
