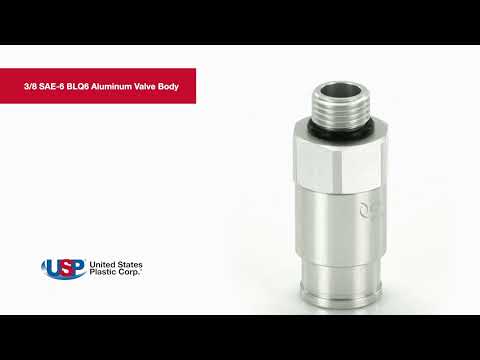

3/8 SAE-6 BLQ6 Aluminum Valve Body (Insert Sold Separately)

Item #: 63492

$63.10/Each

Buy in Quantity & Save!

2-4$59.95Save 5%
5-14$56.79Save 10%
15+$53.64Save 15%

Overview

Everis™ BLQ6 series offers ultra-reliable, no-drip connections for thermal management to help protect valuable electronic systems. This series is designed specifically for blind mate liquid cooling applications. A friction-free valve eliminates drips and is specifically designed to withstand long-term connection.

  • Aluminum main housing, Anodized finish & EPDM seals
  • Polysulfone valve & stainless steel valve spring
  • Lubricated with Krytox® PFPE
  • Dimensions:0.875" Dia. x 2.08" L
  • Spillage per disconnect: <0.03cc at 0 psi & 120 psi
  • Inclusion: <0.022cc per connect & flow coefficient: Cv ~ 2.2
  • Axial misalignment: 1mm max
  • Max. flow at disconnect: 3 gal/min, 11.3L/min
  • Pressure rating: 120 psi, 8.3 bar
  • Temperature range: 0°F to 240°F (operating) & -40°F to 240°F (storage & shipping)

Item Information

Item Number: 63492
Catalog Page Number: P-255
Manufacturer: CPC™
Manufacturer Part #: BLQ6D30006
Country of Origin: USA

Tech Specs

Weight: 0.059 lbs
