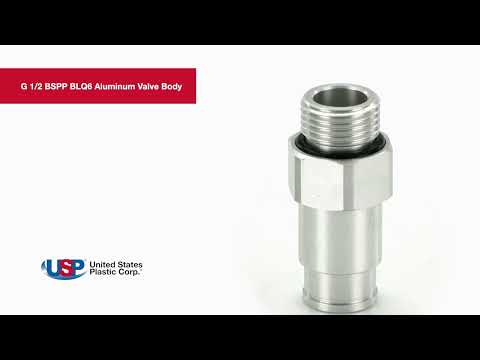

G 1/2 BSPP BLQ6 Aluminum Valve Body (Insert Sold Separately)

Item 63493

77.84/Each
Add to Cart

Buy in Quantity & Save!

5% off at 2+73.948/Each
10% off at 5+70.056/Each
15% off at 15+66.164/Each

Overview

Everis™ BLQ6 series offers ultra-reliable, no-drip connections for thermal management to help protect valuable electronic systems. This series is designed specifically for blind mate liquid cooling applications. A friction-free valve eliminates drips and is specifically designed to withstand long-term connection.

  • Aluminum main housing, Anodized finish & EPDM seals
  • Polysulfone valve & stainless steel valve spring
  • Lubricated with Krytox® PFPE
  • Dimensions: 1.02" Dia. x 2.26" L
  • Spillage per disconnect: <0.03cc at 0 psi & 120 psi
  • Inclusion: <0.022cc per connect & flow coefficient: Cv ~ 2.2
  • Axial misalignment: 1mm max
  • Max. flow at disconnect: 3 gal/min, 11.3L/min
  • Pressure rating: 120 psi, 8.3 bar
  • Temperature range: 0°F to 240°F (operating) & -40°F to 240°F (storage & shipping)

Item Information

Item Number: 63493
Catalog Page Number: P-257
Manufacturer: CPC™
Manufacturer Part #: BLQ6D31008
Country of Origin: USA

Tech Specs

Material: Aluminum
Configuration: G 1/2 BSPP
Weight: 0.081 lbs
