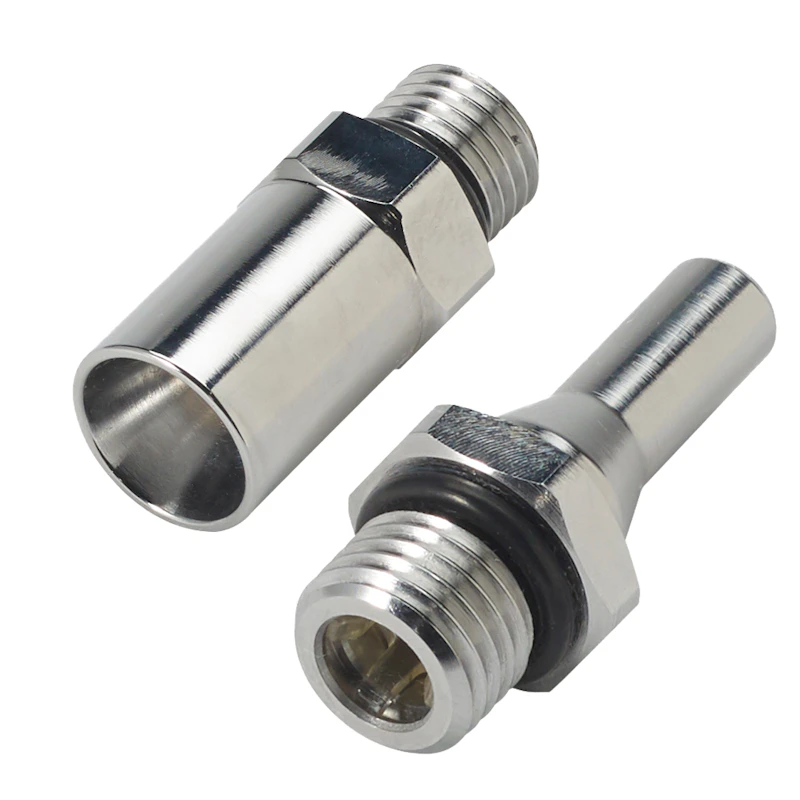

Everis™ BLQ2 Quick Disconnects

BLQ2 series quick disconnect couplings provide ultrareliable, dripless connections and disconnections that protect valuable electronics—explicitly designed for rack-mounted liquid cooling applications. A friction-free valve eliminates drips and can withstand long-term connection. Valves are designed to allow full flow even when not fully engaged.

  • Chrome-plated brass main housing & polysulfone valve
  • Stainless steel valve spring
  • EPDM seals
  • Lubricated with Krytox® PFPE
  • Max. flow at disconnect: 1.00 gal/min at 0 to 100 psi; .025 gal/min at 101 to 200 psi
  • Spillage per disconnect: <0.015cc at 0 psi, <0.063cc at 200 psi
  • Inclusion: <0.063cc per connect
  • Pressure rating: 200 psi, 13.8 bar
  • Temperature range: 0°F to 240°F
Stock Description Catalog Pg. Price
1/4 SAE-4 BLQ2 Chrome-plated Brass Valve Body (Insert Sold Separately)
63488
$29.50/Each
Save 5%2+$28.02/Each
Save 10%5+$26.55/Each
Save 15%15+$25.07/Each
P-256
$29.50/Each
1/4 SAE-4 BLQ2 Chrome-plated Brass Valve Insert (Body Sold Separately)
63489
$27.17/Each
Save 5%2+$25.81/Each
Save 10%5+$24.45/Each
Save 15%15+$23.09/Each
P-256
$27.17/Each
