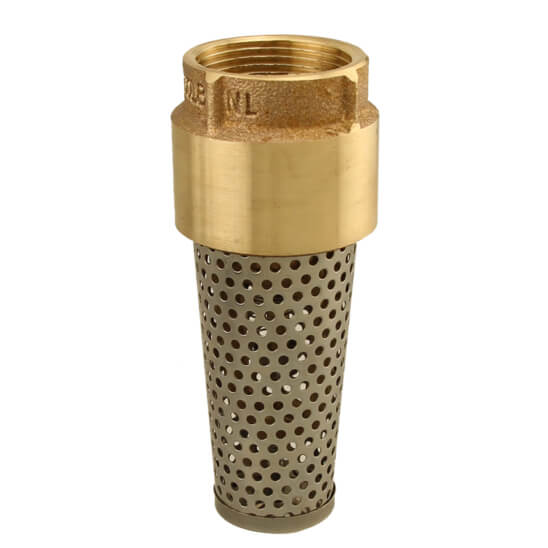

1-1/2" FPT No-Lead Brass Foot Valve

Item 20153

36.39/Each
Add to Cart

Buy in Quantity & Save!

5% off at 4+34.5705/Each
10% off at 8+32.751/Each
15% off at 24+30.9315/Each

Overview

These foot valves feature a no-lead cast brass body and poppet, stainless steel screen, and Nitrile Buna-N o-ring seal.

  • Cast no-lead brass body & poppet
  • NBR O-ring seal
  • 304 stainless steel screen with 0.104" diameter holes
  • Dimensions: 2.36" L x 2.36" W x 5.86" Hgt.
  • Threads conform to ANSI/ASME B1.20.1
  • Working pressure @ 70°F: 200 psi non-shock
  • Max. working temperature: 180°F (82°C)
  • Meets NSF/ANSI Standard 372

Item Information

Item Number: 20153
Catalog Page Number: P-484
Manufacturer: Boshart Industries
Manufacturer Part #: 17YBFV150NL
Country of Origin: USA

Tech Specs

Size: 1-1/2"
Seal: Buna-N
Material: Brass
Weight: 1.257 lbs
