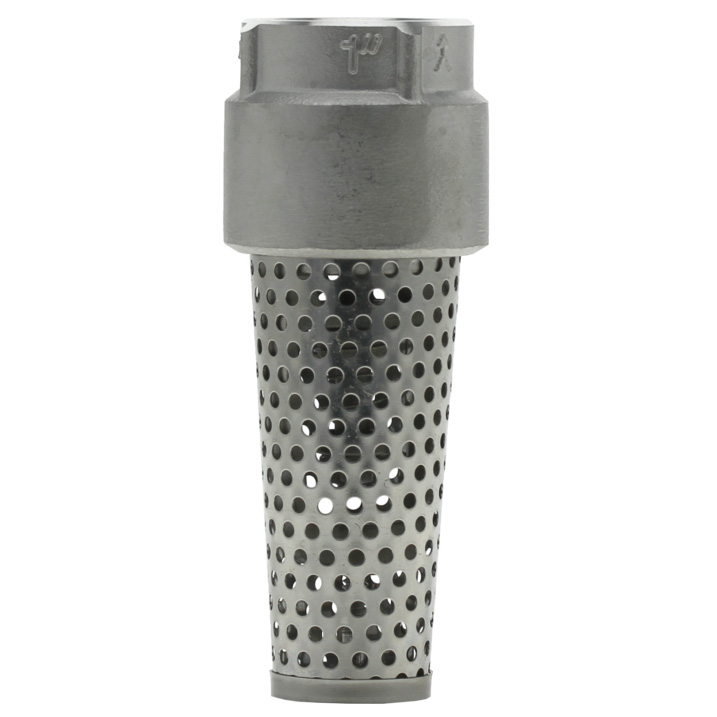

1" FPT No-Lead 304 Stainless Steel Foot Valve

Item #: 20161

$29.00/Each
Add to Cart

Buy in Quantity & Save!

5% off at 4+$27.55/Each
10% off at 8+$26.10/Each
15% off at 24+$24.65/Each

Overview

These no-lead 304 stainless steel foot valves feature a Viton™ O-ring for maximum chemical resistance in higher temperature applications.

  • Cast no-lead 304 stainless steel body & poppet
  • Viton™ O-ring seal
  • 304 stainless steel screen with 0.104" diameter holes
  • Dimensions: 4.57" L x 1.77" W x 1.77" Hgt.
  • Threads conform to ANSI/ASME B1.20.1
  • Maximum pressure (ambient temperature): 200 psi WOG non-shock
  • Maximum temperature: 180°F (82°C)
  • NSF/ANSI standard 372 certified

Item Information

Item Number: 20161
Catalog Page Number: P-NEW
Manufacturer: Boshart Industries
Manufacturer Part #: 17FVSS-100
Country of Origin: Taiwan

Tech Specs

Size: 1"
Material: Stainless Steel
Seal: Viton™
Weight: 0.622 lbs
