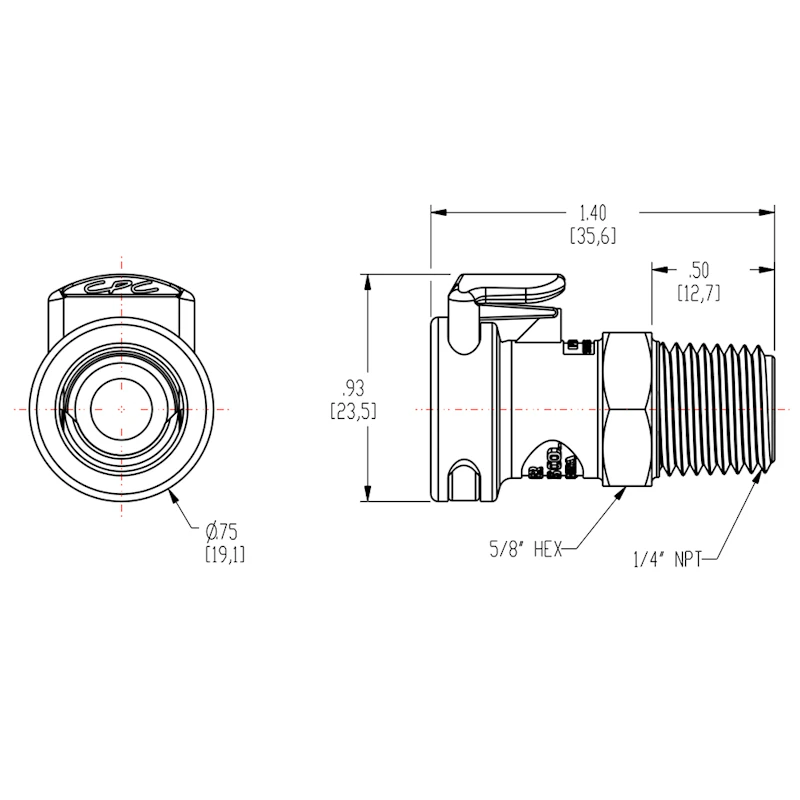

1/4" MNPT NSF-Listed APC Series Acetal Coupling Body - Straight Thru (Insert Sold Separately)
1/4" MNPT NSF-Listed APC Series Acetal Coupling Body - Straight Thru (Insert Sold Separately)

1/4" MNPT NSF-Listed APC Series Acetal Coupling Body - Straight Thru (Insert Sold Separately)

Item 84454
6.49/Each

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Buy in Quantity & Save!

5% off at 25+6.1655/Each
10% off at 50+5.841/Each
15% off at 150+5.5165/Each

Overview

The APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. These couplings are listed under NSF/ANSI Standard 169 and are made from FDA-approved materials, making them excellent for office coffee service, water filtration, condiment dispensing, and dairy processing.

  • Acetal main components, valve & thumb latch with Buna-N O-rings
  • Non-valved
  • SS external springs & pin
  • Plastic thumb latch, no exposed metal parts
  • Shrouded thumb latch protects against accidental disconnects
  • Integrated terminations for fewer leak points
  • Mates with most EFC couplings
  • Pressure rating: vacuum to 120 psi, 8.3 bar
  • Temperature rating: -40°F to 180°F (-40°C to 82°C)
  • NSF 169 listed

Item Information

Item Number: 84454
Catalog Page Number: P-254
Manufacturer: CPC™
Manufacturer Part #: 44400
Country of Origin: USA

Tech Specs

Size: 1/4"
Configuration: MNPT Quick Disconnect
Material: Acetal
Weight: 0.011 lbs
WARNING: Cancer - www.P65Warnings.ca.gov
