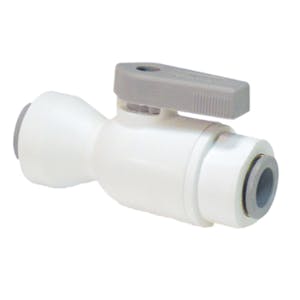

These ball valves with built-in LIQUIfit™ connections offer a compact, cost-effective solution for fluid-handling applications where cleanliness and efficiency are critical. The integrated push-to-connect LIQUIfit™ fittings eliminate the need for secondary fittings, reducing potential leak points while ensuring fast, tool-free installation. Simply push the tubing into the fitting to connect; to disconnect, depress the release button and pull the tubing free. Designed for bidirectional flow, these valves deliver reliable performance in tight spaces. With broad chemical compatibility, they are well-suited for water purification, beverage dispensing, food processing, bottling, chemical handling, and pneumatic applications where contamination-free operation is essential.
- Polypropylene
- D-shaped EPDM seals
- SS gripping ring eliminates locking clips
- Self-cleaning, scale-resistant polysulfone ball
- The compact design facilitates the tightest tube bends
- Working pressure @ 73°F: 150 psi
- Temperature range: 0°F to 225°F
- Dimensions: 2.35" L x 0.36" Hgt. w/out Handle
- Thru hole: 0.25" Diameter
- FDA-compliant resin/materials; NSF 51 & 61 listed
