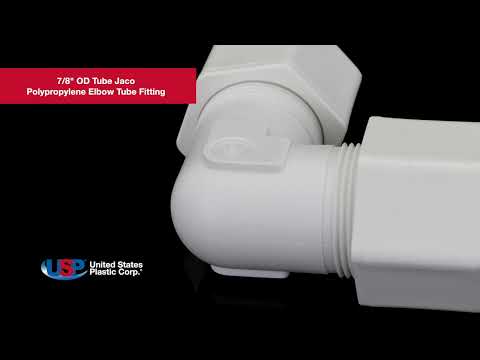

7/8" OD Tube Jaco Polypropylene Elbow Tube Fitting

Item 61214
9.04/Each

Buy in Quantity & Save!

5% off at 100+8.588/Each
10% off at 200+8.136/Each
15% off at 600+7.684/Each

Overview

These compression style fittings are offered in three different resins for a range of applications dealing with temperatures, acids and chemicals. The polypropylene Jaco fittings are 20% glass-filled and exhibit good chemical resistance to a wide range of chemicals.

  • Polypropylene
  • Good chemical resistance
  • Has a plastic gripper
  • Dimensions: 1-9/16" center line to end
  • Nut thread: 1-3/16-20
  • Working pressure: 220 psi
  • Temperature range: -30°F to 215°F
  • NSF/ANSI/CAN 61 listed

Videos

360 Video
360 Video

Item Information

Item Number: 61214
Catalog Page Number: P-274
Manufacturer: JACO
Manufacturer Part #: 50-14-P-PG
Country of Origin: USA

Tech Specs

Material: Polypropylene
Configuration: Compression x Compression
Size: 7/8" x 7/8"
Weight: 0.135 lbs

Product testing for individual applications is recommended before use. U.S. Plastic Corp. cannot be held liable for individual application failures.
