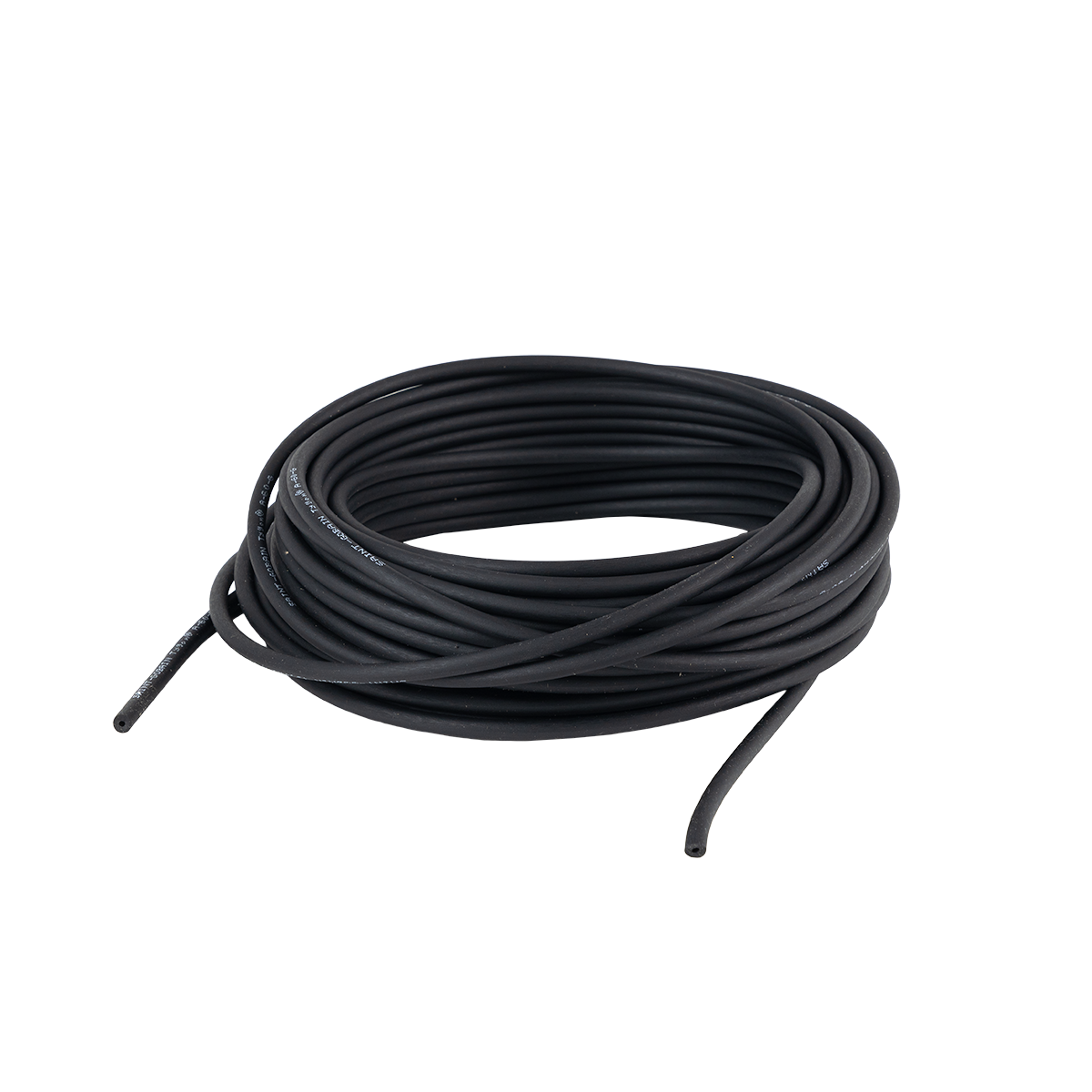

1/16" ID x 3/16" OD x 1/16" Wall Tygon® A-60-G Industrial Grade Tubing

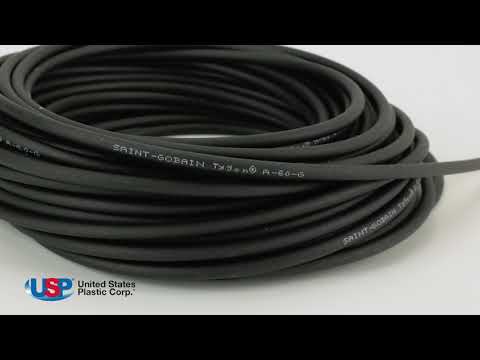

360 Video

1/16" ID x 3/16" OD x 1/16" Wall Tygon® A-60-G Industrial Grade Tubing

Item 54262

8.7 for 10 Feet (0.87/Foot)

Sold in increments of 10 feet. Shipped in full pieces up to the standard length listed in the product overview below unless specified in your order comments.

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Add to Cart Get Notified

Buy in Quantity & Save!

5% off at 100+	0.8265/Foot
10% off at 200+	0.783/Foot
15% off at 600+	0.7395/Foot

Overview

This tubing outperforms neoprene, EPDM, and other general-purpose tubing. It has a wide range of applications such as gaskets, abrasion-resistant sleeves, and cable insulations.

Will not weaken or crack
Excellent resistance to inorganic fluids
UV & ozone resistant
Durometer hardness (shore A): 61
Temperature range: -75°F to 275°F
Maximum pressure rating @ 73°F: 34 psi (21 psi @ 180°F)
Minimum bend radius: 1/4"
Vacuum rating @ 73°F & 180°F: 29.9 in. Hg
Priced per foot, sold in 10' intervals - 50' standard length (±6" cut tolerance)

Videos

360 Video

Item Information

Item Number: 54262

Catalog Page Number: P-214

Manufacturer: Tygon®

Manufacturer Part #: AFL00003

Country of Origin: USA

Tech Specs

Color: Black

ID: 1/16"/.062"

OD: 3/16"

Wall: 1/16"/0.062"

Weight: 0.016 lbs

PDF:MSDS

PDF:Specsheet
