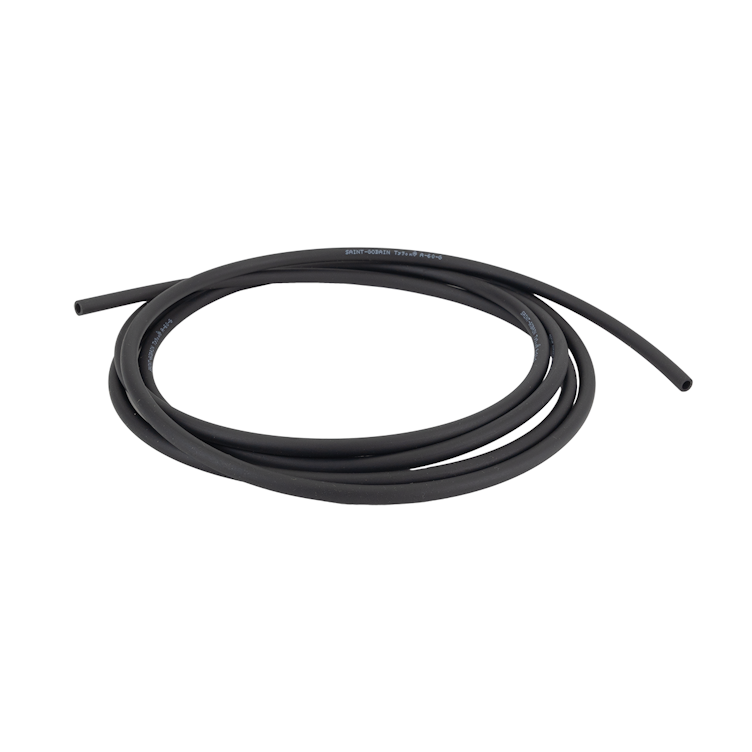

3/16" ID x 5/16" OD x 1/16" Wall Tygon® A-60-G Industrial Grade Tubing

Item 54265
9.2 for 10 Feet (0.92/Foot)
Sold in increments of 10 feet. Shipped in full pieces up to the standard length listed in the product overview below unless specified in your order comments.

Buy in Quantity & Save!

5% off at 100+0.874/Foot
10% off at 200+0.828/Foot
15% off at 600+0.782/Foot

Overview

This tubing outperforms neoprene, EPDM, and other general-purpose tubing. It has a wide range of applications such as gaskets, abrasion-resistant sleeves, and cable insulations.

  • Will not weaken or crack
  • Excellent resistance to inorganic fluids
  • UV & ozone resistant
  • Durometer hardness (shore A): 61
  • Temperature range: -75°F to 275°F
  • Maximum pressure rating @ 73°F: 13 psi (8 psi @ 180°F)
  • Minimum bend radius: 3/4"
  • Vacuum rating @ 73°F & 180°F: 29.9 in. Hg
  • Priced per foot, sold in 10' intervals - 50' standard length (±6" cut tolerance)

Item Information

Item Number: 54265
Catalog Page Number: P-192
Manufacturer: Tygon®
Manufacturer Part #: AFL00012
Country of Origin: USA

Tech Specs

Color: Black
ID: 3/16"
OD: 5/16"
Wall: 1/16"/0.062"
Weight: 0.022 lbs
