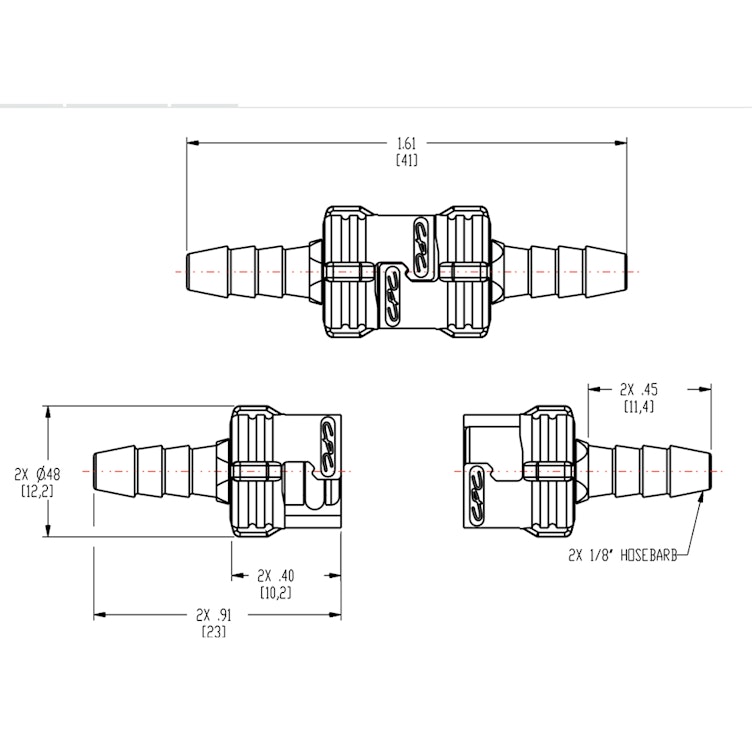

1/8" Hose Barb Acetal In-Line Coupling Set - Shutoff
1/8" Hose Barb Acetal In-Line Coupling Set - Shutoff

1/8" Hose Barb Acetal In-Line Coupling Set - Shutoff

Item #: 64188
In Stock
$11.61/Each

Buy in Quantity & Save!

25-49$11.03Save 5%
50-149$10.45Save 10%
150+$9.87Save 15%

Overview

These twist-to-connect couplings provide a reliable and more secure alternative to luer-type connections. They also allow for the tubing to rotate freely when connected. This important feature prevents both kinked tubing and accidental disconnection during use.

  • Acetal main components
  • Acetal locking sleeves & valves
  • 316 SS valve spring
  • Buna-N O-rings
  • Free coupling rotation eliminates kinked tubing
  • Pressure rating: vacuum to 100 psi, 6.9 bar
  • Acetal temperature range: -40°F to 180°F (-40°C to 82°C)

Item Information

Item Number:64188
Catalog Page Number:P-218
Manufacturer:CPC™
Manufacturer Part #:SMCD02

Tech Specs

Weight: 0.004 lbs
