3/8" NPT APC Series Acetal Coupling Body - Shutoff
3/8" NPT APC Series Acetal Coupling Body - Shutoff

3/8" NPT APC Series Acetal Coupling Body - Shutoff

Item #: 64643
In Stock
$5.51/Each

Buy in Quantity & Save!

24-47$5.23Save 5%
48-95$4.96Save 10%
96+$4.68Save 15%

Overview

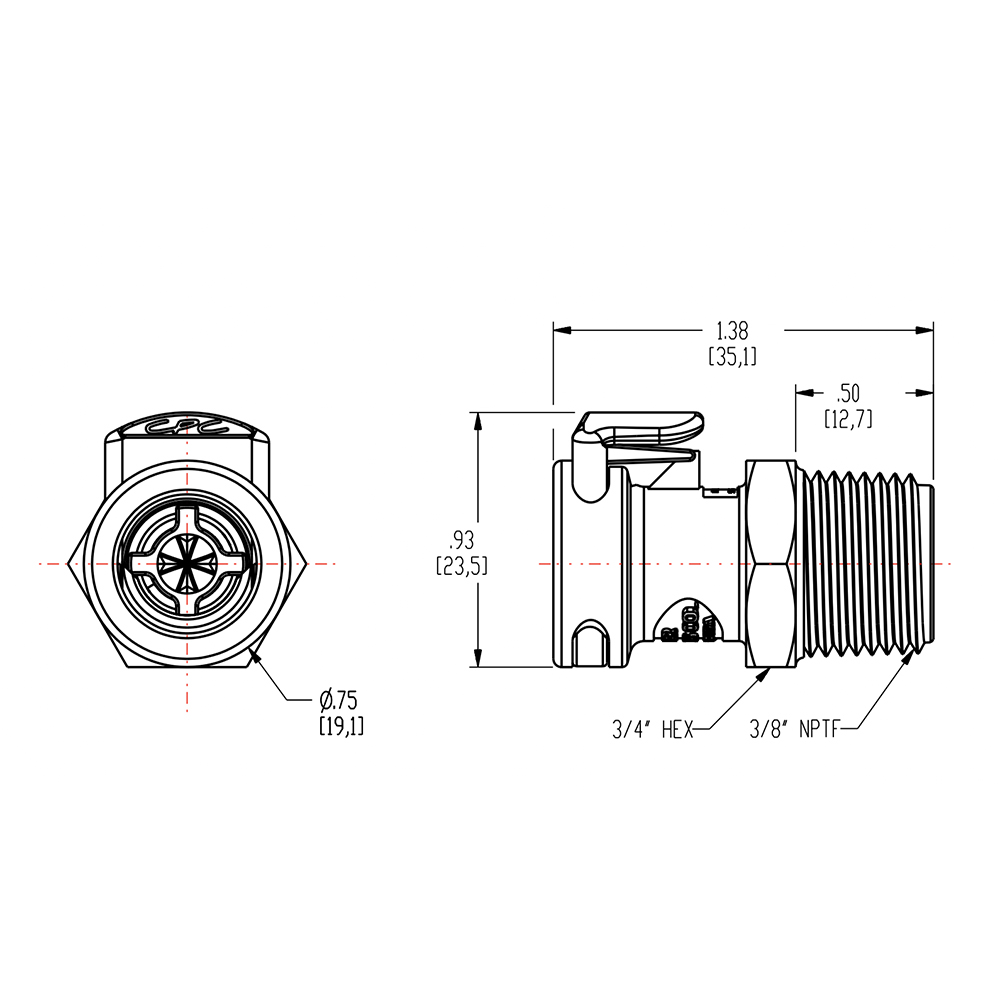

3/8" NPT APC Series Acetal Coupling Body is 1.40" long and .93" high.

  • Acetal main components, valve & thumb latch
  • 316 SS valve spring
  • SS external springs & pin
  • Buna-N O-rings
  • Plastic thumb latch, no exposed metal parts
  • Shrouded thumb latch protects against accidental disconnects
  • Integrated terminations for fewer leak points
  • Mates with most EFC couplings
  • Pressure rating: vacuum to 120 psi, 8.3 bar
  • Temperature rating: -40°F to 180°F (-40°C to 82°C)

Item Information

Item Number:64643
Catalog Page Number:P-215
Manufacturer:CPC™
Manufacturer Part #:APCD10006

Tech Specs

Weight: 0.016 lbs
