3/8" OD In-line Ferruleless Polytube APC Series Acetal Coupling Body w/Shroud  - Straight Thru
3/8" OD In-line Ferruleless Polytube APC Series Acetal Coupling Body w/Shroud  - Straight Thru

3/8" OD In-line Ferruleless Polytube APC Series Acetal Coupling Body w/Shroud - Straight Thru

Item #: 64645
In Stock
$8.33/Each

Buy in Quantity & Save!

24-47$7.91Save 5%
48-95$7.50Save 10%
96+$7.08Save 15%

Overview

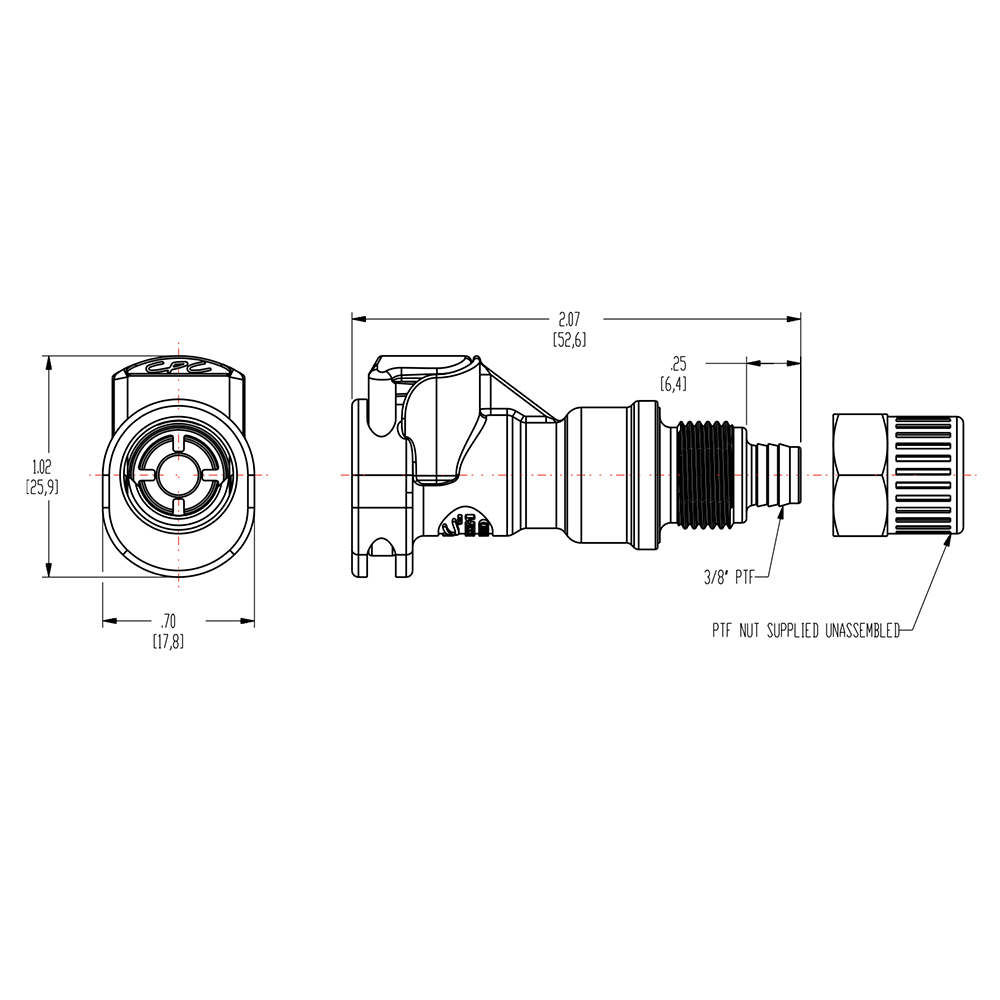

3/8" OD In-line Ferruleless Polytube APC Series Acetal Coupling Body w/Shroud is 2.07" long and 1.30" high. It has a shroud around the thumb latch to prevent accidental disconnection. This fitting accepts 3/8" OD and .250" ID poly tubing.

  • Acetal main components, valve & thumb latch
  • 316 SS valve spring
  • SS external springs & pin
  • Buna-N O-rings
  • Plastic thumb latch, no exposed metal parts
  • Shrouded thumb latch protects against accidental disconnects
  • Integrated terminations for fewer leak points
  • Mates with most EFC couplings
  • Pressure rating: vacuum to 120 psi, 8.3 bar
  • Temperature rating: -40°F to 180°F (-40°C to 82°C)

Item Information

Item Number:64645
Catalog Page Number:P-215
Manufacturer:CPC™
Manufacturer Part #:APC13006SH

Tech Specs

Weight: 0.035 lbs
