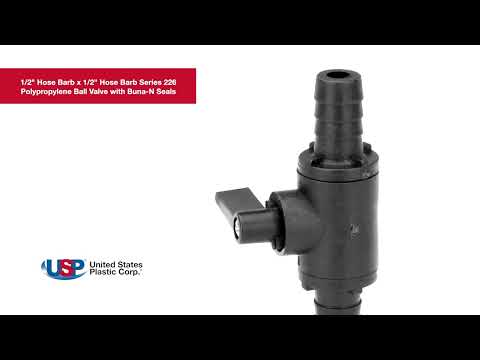

The 226 Series Two-Way Ball Valve features a versatile design that allows multiple configurations to match specific application requirements. It supports flow and pressure in either direction, and the handle aligns over the inlet port when the valve is in the open position for easy visual confirmation.
- Black glass filled polypropylene
- Buna-N seals
- Good chemical resistance
- Flag handle
- Supports flow & pressure in either direction
- Not for vacuum
- 0.312" diameter through hole in ball
- Dimensions: 3-1/4” L x 1-3/4” Hgt.
- Maximum pressure: 125 psi
- Maximum temperature: 140°F
