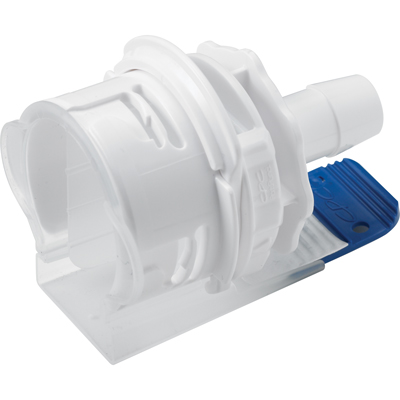

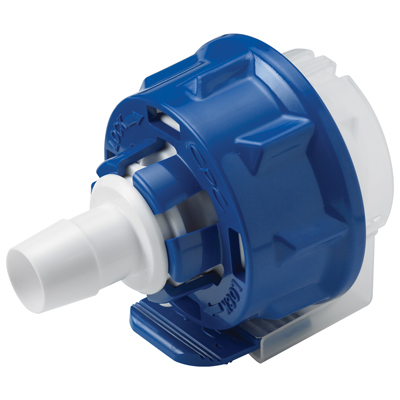

AseptiQuik Connectors provide quick and easy sterile connections, even in non-sterile environments. AseptiQuik's "CLICK-PULL-TWIST" design enables users to transfer media easily with less risk of operator error with its intuitive three-step process. The connector's robust design provides reliable performance without the need for clamps, fixtures, or tube welders. 1. Align male and female couplings, push together until "Colder Click" confirmation. Slight rotation of lock ring may be required for proper alignment prior to connection. 2. Snap membrane, pull tabs together and pull from the connector. 3. Twist the blue lock ring Clock-wise until "Colder Click" and rib to arrow alignment confirms the secure final connection. Biopharmaceutical manufacturers can make sterile connections with the quality and market availability they expect from the leader in single-use connection technology. Non-returnable
- Blue & white polycarbonate; high-temperature version is all white
- Clear, platinum-cured silicone
- Clear polypropylene caps
- The standard version has polyethylene membrane
- The high-temperature version has hydrophobic polyethersulfone membrane
- Gamma: up to 50kGy irradiation
- Autoclave High-Temperature Version: up to 266°F for 30 minutes
- Pressure rating: up to 60 psi, 4.1 bar
- Temperature: 39°F to 104°F (1°C to 40°C)
- Meets USP Class VI & ADCF requirements
