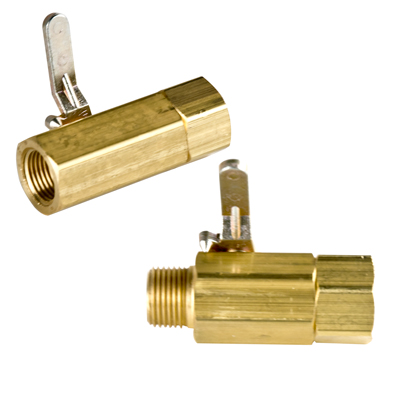

3/8" FNPT x 3/8" MNPT Series 038 Two-way Brass Valve with Viton™ Seals

Item 22378

Buy in Quantity & Save!

5% off at 10+22.1445/Each
10% off at 20+20.979/Each
15% off at 60+19.8135/Each


The 038 Series Two-Way Ball Valve compact design promotes multiple configurations to fit the exact end use application. The 038 Series has a two-piece body and end construction to cover 3/8" NPT end configuration applications.

  • Brass body & ends
  • Zinc Die Cast Lever Handle
  • Electroless nickel plated brass ball
  • PTFE seats
  • Viton™ seals
  • .312" diameter through hole in ball
  • Support flow & pressure in either direction
  • Maximum pressure: 500 psi
  • Maximum temperature: 180°F

Item Information

Item Number: 22378
Catalog Page Number: P-489
Manufacturer: SMC
Manufacturer Part #: 6120590
Country of Origin: USA

Tech Specs

Seal: FKM
Connection: FNPT x MNPT
Size: 3/8"
Material: Brass
Weight: 0.332 lbs
