How do the Madison Single Point Level Switches work?

We offer both Horizontal and Vertical Single Point Level Switches.
A magnetic float travels up and down the stem between float stops actuating or de-actuating a dry contact reed switch encapsulated inside the stem. When the magnetic field comes in close proximity to the reed switch, the contact closes.
Switch operation is determined in a dry condition with the installation fitting up and the float at rest against the lower float stop.

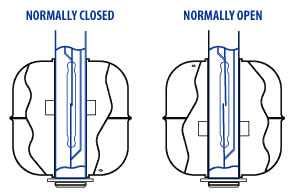

Normally Closed (NC): Switch will open on the rise of liquid and close on the fall of liquid.
Normally Open (NO): Switch will close on the rise of liquid and open on the fall of liquid.
NOTE: Madison switches are supplied in the normally closed (NC) position, unless otherwise specified.
For more information on these switches check out this Video.
