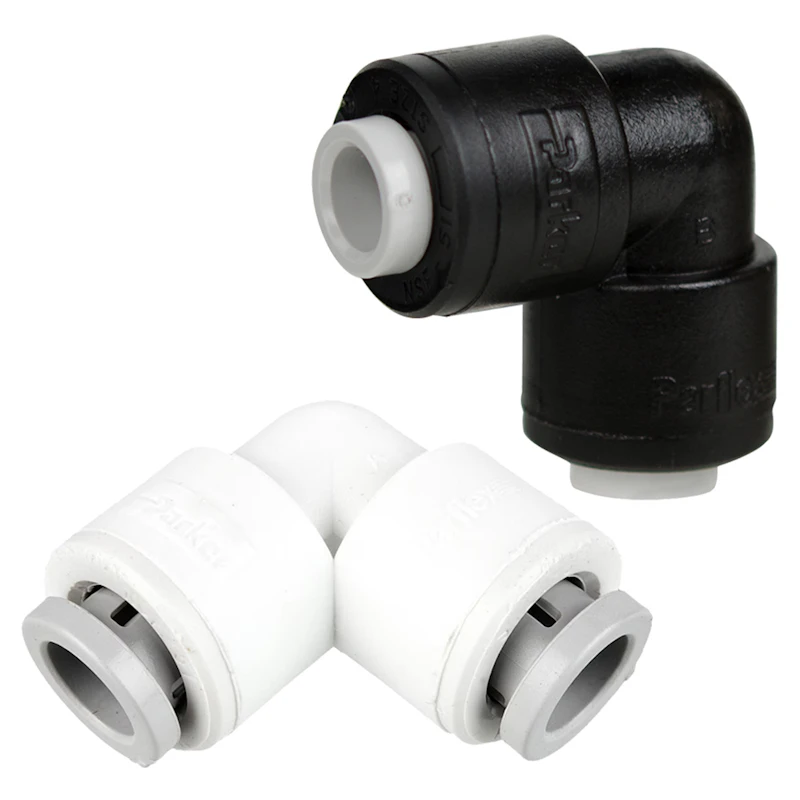

TrueSeal™ push-to-connect fittings provide a lightweight, durable, and tool-free solution for connecting tubing in demanding fluid-handling applications. Designed for quick field installation, these fittings allow tubing to be securely connected by simply pushing it into place, while a push-button release enables easy disconnection when needed. The robust body offers excellent strength and chemical resistance, making these fittings well-suited for water treatment, filtration, beverage dispensing, and harsh chemical environments. TrueSeal™ fittings feature a molded plastic gripping ring with bite-edge teeth for secure tube retention, along with an engineered O-ring that enhances seal compression for reliable, leak-resistant performance. Their lead-free construction is suitable for use with food and beverage, and the fittings are compatible with polyethylene, polypropylene, nylon, vinyl, fluoropolymer, polyurethane, and Kynar® tubing for versatile system integration.
- Polypropylene body
- EPDM seals
- Plastic collet molded from acetal with 302 stainless steel gripper teeth (black polypropylene)
- Plastic collet molded from Ultem (PEI) with Ultem gripper teeth (white polypropylene)
- Lead-free design; White polypropylene is all-plastic
- Working pressure range: vacuum to 150 psi
- Temperature range: 0°F to 225°F
- FDA-compliant resin/materials; NSF/ANSI/CAN 51 listed
