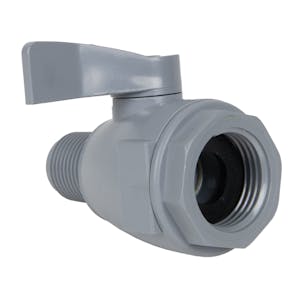

The 074 Series Two-Way Ball Valve features a versatile design that allows for multiple configurations to match specific application requirements. It supports flow and pressure in either direction, and the handle aligns over the inlet port when the valve is in the open position for easy visual confirmation. Additional configurations are available by special order; contact us for a quote.
- PVC body & ends
- Santoprene inlet ball seat & PTFE outlet ball seat
- FKM seals; Stainless steel stem screw
- Good chemical resistance
- Flag handle
- 0.75" diameter through hole in ball
- Not for vacuum
- Maximum pressure: 125 psi
- Maximum temperature: 140°F
- NSF/ANSI/CAN 61 listed
