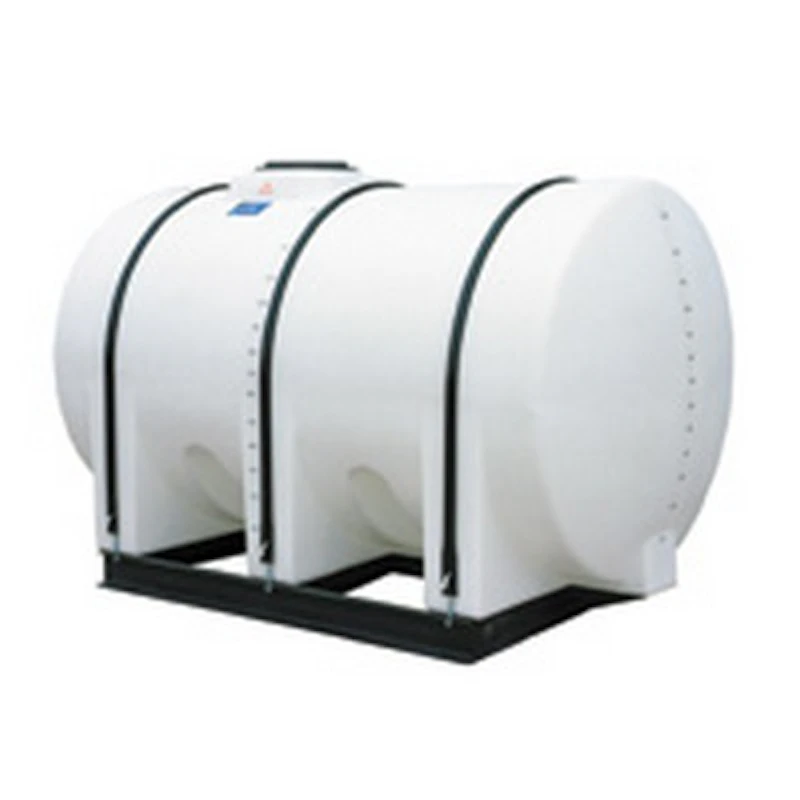

This 1750 gallon tank is 147" long, 62" wide and 67" high. It has a 0.400" nominal wall thickness. It comes standard with a 2" FNPT fitting and a 16" lid. Tank weighs 616 lbs. The hoop set for this is part # 9918 and skid is #9922. Comes with baffle kit.
- Polyethylene with UV inhibitors; Translucent & graduated for monitoring level of liquid
- Polypropylene fitting with Santoprene™ gasket
- Molded-in legs to support the tank; Band locators molded into legs for tie down
- __" lid; __" bulkhead fitting (LOCATION)
- Dimensions: __" L x __" W x __" Overall Hgt.; ___" Nom. wall thickness
- Maximum specific gravity: 1.7
- Max. temperature: 120°F constant & spikes up to 140°F
- FDA-compliant resin/materials; NSF/ANSI/CAN 61 listed
- Must specify if the bulkhead fitting should be installed on side or end discharge
- Hoops (Item # ____) & skid base (Item # ____) are required, sold separately
