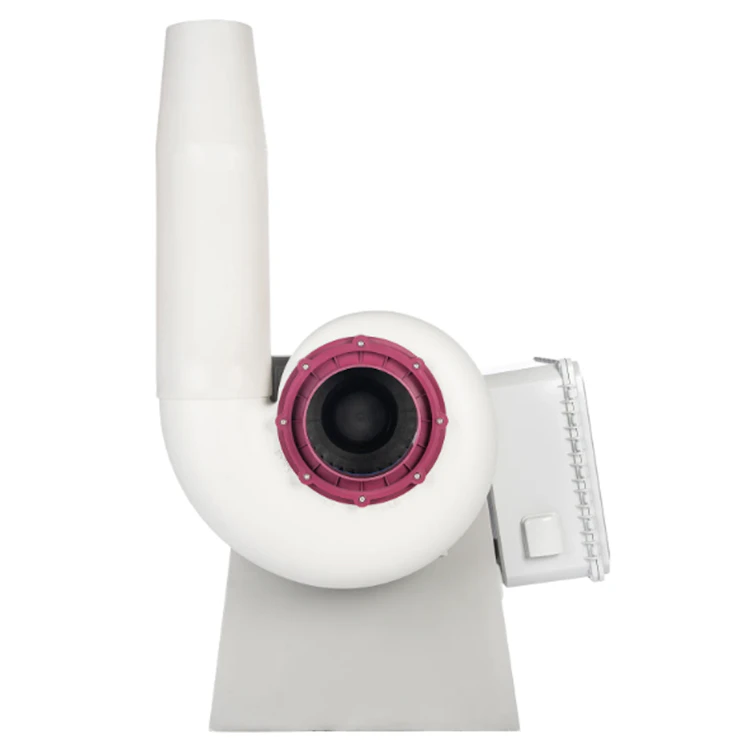

High Plume V-Series blower systems are engineered for the safe and efficient extraction of toxic chemicals and corrosive gases in laboratory, pharmaceutical, and industrial environments. Designed to deliver high-velocity exhaust, these systems help carry hazardous fumes away from buildings, personnel, and air intake systems to reduce the risk of re-entrainment and improve overall facility safety. Constructed entirely of seamless, high-density polypropylene, these units feature no metal in the airstream, providing excellent resistance to acids, corrosives, and moisture. This non-metallic design enhances durability and long-term reliability in harsh environments without the need for protective coatings or additional maintenance. Designed for performance and efficiency, each system features a direct drive fan with a high-efficiency motor mounted outside the contaminated airstream. High-velocity discharge nozzles produce exhaust velocities exceeding 3000 FPM, increasing plume height for safer dispersion of fumes. The V-Series is built as a complete, ready-to-install solution, including a weather-protected motor cover and support stand, an integrated high plume discharge stack with a nozzle to help dilute chemicals in the air, and a NEMA 4X control module housing the VFD, HMI controller, and electrical components for simplified operation. Systems arrive fully assembled, tested, and ready for installation, minimizing setup time and ensuring reliable performance in critical applications. These systems provide a dependable, maintenance-free solution for environments that require high-performance chemical exhaust, such as laboratories, universities, hospitals, chemical processing facilities, and wastewater treatment systems.
- All-polypropylene blower housing; High-density, impact-resistant material
- Resists acids, corrosion & moisture; No metal in airstream for maximum chemical resistance
- Direct drive design with high-efficiency motors; UV-resistant
- High plume design increases exhaust velocity >3000 FPM for safer fume dispersion
- 7.86" OD inlet & 6" OD outlet slip-on connections
- Airflow rate: 100 to 1120 CFM; Static pressure: 0.25 to 0.88 in.w.g.
- Input full load amps (FLA): 1.33 A

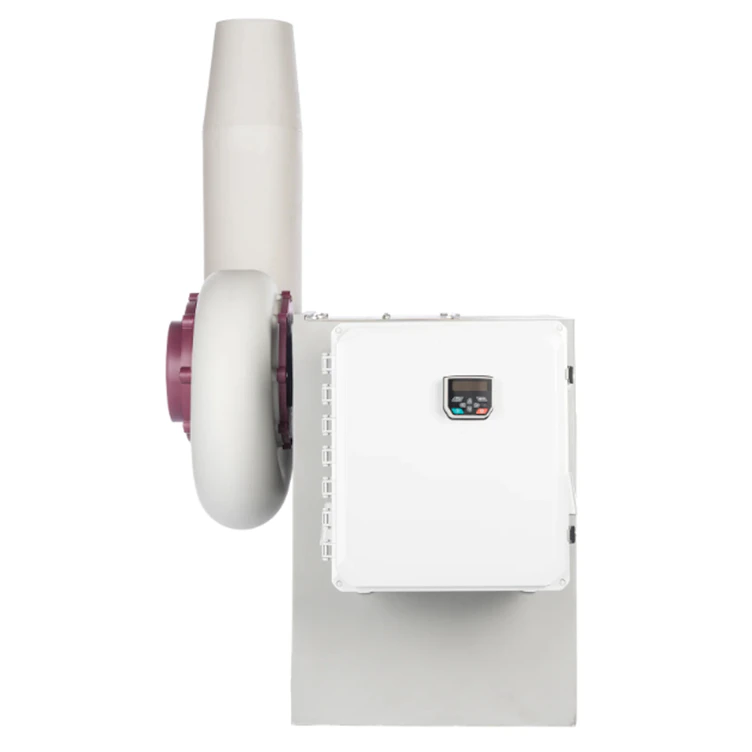

- Includes discharge stack, nozzle, weather-protected motor cover/stand & NEMA 4X control module
- Temperature range: -39°F (Operating) to 140°F (Inlet)
- Compliant with UL-94 standards; Meets ANSI Z9.5, NFPA 45 & AHRAE laboratory exhaust guidelines
