Hayward® BYV Series Butterfly Valves - Hand Lever Operated

The revolutionary BYV Series butterfly valve from Hayward® features the most advanced thermoplastic design and construction in the industry today. These valves have an extremely robust body construction while being lighter than a metal equivalent. They are an excellent option for water and wastewater treatment plants, aquatic and animal life support systems, chemical processing and handling, marine and corrosive environments, mining, metal plating and surface finishing, landfills and environmental infrastructure, and water parks and theme parks. The BYV series features reinforced lug holes and can be special ordered with overmolded 316 stainless steel lugs for dead-end service needs. Other materials are available by special order, contact us for a quote.

  • PVC one-piece body & disc
  • Viton™ or EPDM liner
  • One-piece 316 stainless steel stem with threaded retaining gland
  • Hand lever material incorporates a UV inhibitor for enhanced performance in outdoor applications
  • Hydro-dynamic centric disc design for increased flow performance

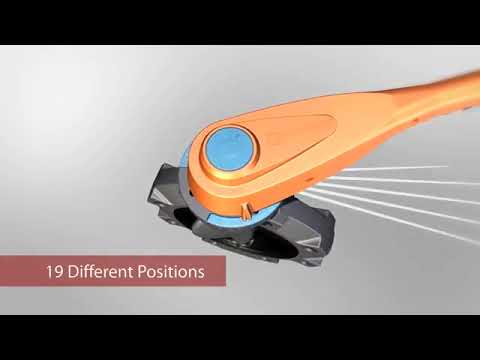

  • Revolutionary hand lever with 19 lockable stop positions & 360° interlock
  • External disc position & flow indication
  • Stem bearing & seal retainer for absolute stem positioning & sealing
  • Meets ANSI B16.10/ISO 5752 narrow face-to-face dimensions; NSF/ANSI/CAN 61 & 372 listed
  • Maximum pressure: 150 psi @ 70°F, non-shock
Item # Description Catalog Pg. Price Add to Cart
2" Hayward® BYV Series PVC Butterfly Valve with EPDM Liner - Hand Lever Operated
Item 20847
374.96/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
374.96/Each
2-1/2" Hayward® BYV Series PVC Butterfly Valve with EPDM Liner - Hand Lever Operated
Item 20848
421.44/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
421.44/Each
3" Hayward® BYV Series PVC Butterfly Valve with EPDM Liner - Hand Lever Operated
Item 20849
407.14/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
407.14/Each
4" Hayward® BYV Series PVC Butterfly Valve with EPDM Liner - Hand Lever Operated
Item 20850
472.86/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
472.86/Each
6" Hayward® BYV Series PVC Butterfly Valve with EPDM Liner - Hand Lever Operated
Item 20851
708.4/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
708.4/Each
8" Hayward® BYV Series PVC Butterfly Valve with EPDM Liner - Hand Lever Operated
Item 20852
1239.59/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
1239.59/Each
2" Hayward® BYV Series PVC Butterfly Valve with Viton™ Liner - Hand Lever Operated
Item 20853
506.47/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
506.47/Each
2-1/2" Hayward® BYV Series PVC Butterfly Valve with Viton™ Liner - Hand Lever Operated
Item 20854
716.08/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
716.08/Each
3" Hayward® BYV Series PVC Butterfly Valve with Viton™ Liner - Hand Lever Operated
Item 20855
679.96/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
679.96/Each
4" Hayward® BYV Series PVC Butterfly Valve with Viton™ Liner - Hand Lever Operated
Item 20856
843.6/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
843.6/Each
6" Hayward® BYV Series PVC Butterfly Valve with Viton™ Liner - Hand Lever Operated
Item 20857
1479.11/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
1479.11/Each
8" Hayward® BYV Series PVC Butterfly Valve with Viton™ Liner - Hand Lever Operated
Item 20858
2397.59/Each
Save 5% when you buy 2+
Save 10% when you buy 4+
Save 15% when you buy 12+
P-567
2397.59/Each
