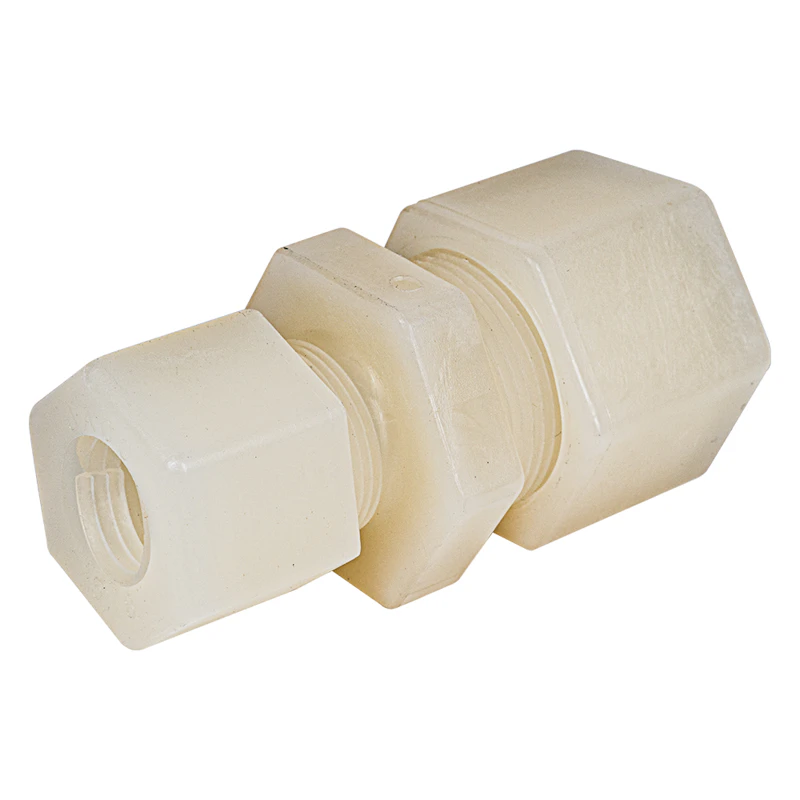

Jaco reducing union connectors are precision compression fittings designed to securely connect two tubes of different diameters. These fittings use a compression nut and ferrule system to create a tight, leak-resistant seal without the need for threading. Available in multiple materials to suit a wide range of temperatures, chemicals, and applications, these fittings are ideal for fluid handling, pneumatic, and instrumentation systems. Their durable construction and simple installation make them a reliable choice for both industrial and laboratory use. Kynar® PVDF reducing unions are ideal for highly corrosive environments and UV-exposed applications. Best used with Kynar®, PTFE, FEP, and PFA tubing, these fittings provide reliable performance in demanding chemical systems.
- Kynar® PVDF body
- PVDF gripper
- Resistant to highly corrosive fluids & UV
- Use Kynar® fittings with Kynar®, PTFE, FEP & PFA tubing
- Hex size: 1-7/16"
- Nut thread: 1-3/16-16 & 7/8-20
- Max. working pressure: 220 psi
- Temperature range: -40°F to 250°F
- FDA-compliant resin/materials; NSF/ANSI/CAN listed
