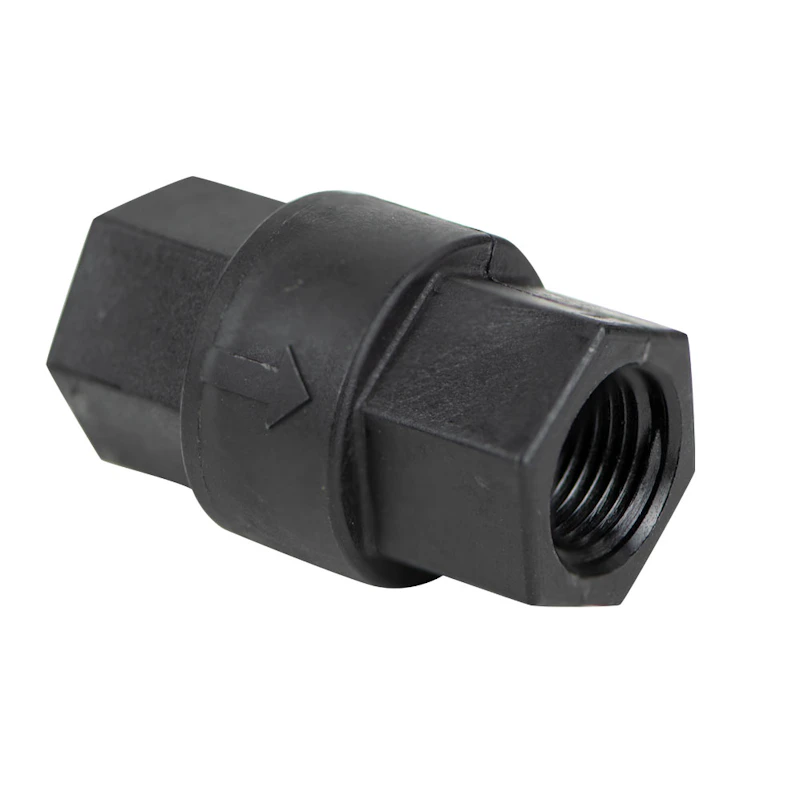

3/8" FNPT x 3/8" FNPT Series 693 Black Polypropylene Check Valve with FKM Seals, 1/3 psi Cracking Pressure & 302 SS Spring

3/8" FNPT x 3/8" FNPT Series 693 Black Polypropylene Check Valve with FKM Seals, 1/3 psi Cracking Pressure & 302 SS Spring

Item 22232

Out of Stock (On Order)

9.71/Each

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Add to Cart Get Notified

Buy in Quantity & Save!

5% off at 12+	9.2245/Each
10% off at 24+	8.739/Each
15% off at 72+	8.2535/Each

Overview

The 693 Series offers reliable backflow prevention in compact installations using 3/8" NPT connections and a Cv of 4.2. With an FKM seal and a 302 stainless steel spring, including a disc poppet, it has a cracking pressure of 1/3 psi. This series suits low-pressure chemical, air, and fluid systems, especially when space is limited.

Polypropylene
FKM seals
302 SS spring
High flow rate
Seat area open diameter: 0.438"; Positive seal at very low back pressure or slight vacuum
Check mechanism: Disc poppet
Cracking pressure: 1/3 psi
Maximum pressure: 125 psi
Maximum temperature: 140°F
Dimensions: 2.02" L x 1.44" W

Item Information

Item Number: 22232

Catalog Page Number: P-529

Manufacturer: SMC

Manufacturer Part #: 6930290

Country of Origin: USA

Tech Specs

Material: Polypropylene

Seal: FKM

Connection: FNPT x FNPT

Size: 3/8"

Weight: 0.045 lbs
