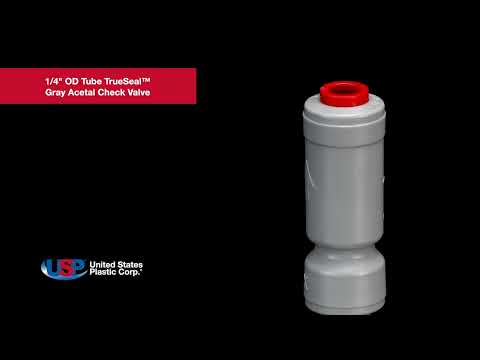

TrueSeal™ is a revolutionary fitting for water systems that solves a number of problems associated with push-to-connect fittings used for water treatment, potable water, food and beverage, reverse osmosis, chemical and filtration applications. These push-to-connect check valves ensure protection against reversal of flow featuring an arrow molded into the body to indicate the direction of flow. The valves are designed for connection with either thermoplastic or soft metal tubing and are intended for use with liquids only.
- Acetal body, EPDM O-rings & 300 SS grippers; Red collet
- Full flow profile delivers the maximum capability
- Compact push-to-connect design facilitates the tightest tube bends
- Ensures protection against reversal of flow
- Arrow molded into the body to indicate the direction of flow
- Dimensions: 0.66" Dia. x 2" L
- Working pressure @ 73°F: 145 psi, 10 bar (depending on the tubing being used)
- Cracking pressure: 1/3 psi
- Temperature range: 34°F to 150°F
- FDA-compliant resin/materials; NSF/ANSI/CAN 51 & 61 listed listed
