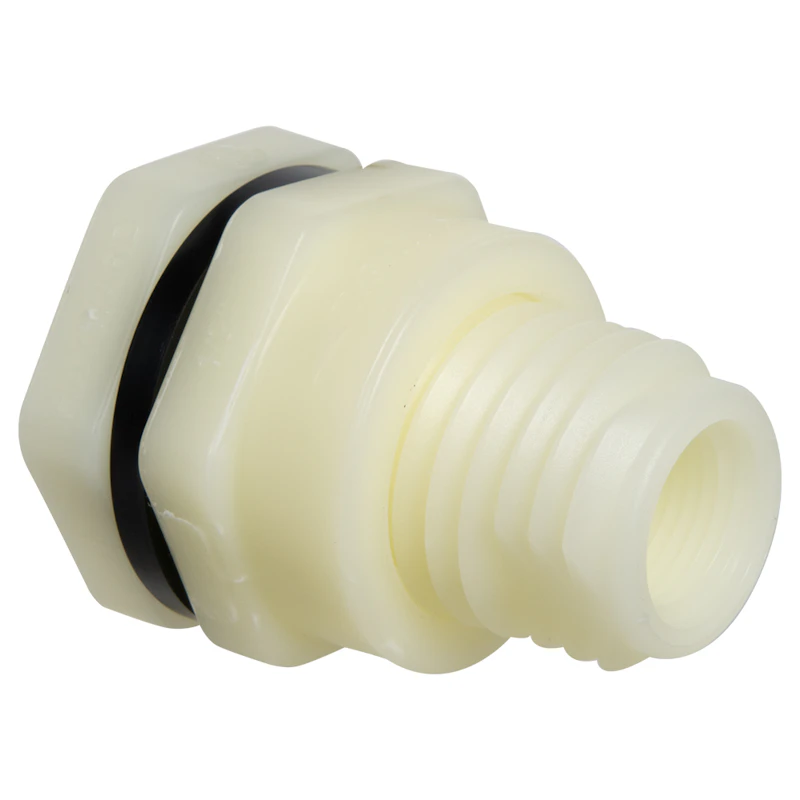

This installed 3/4" Polypropylene Bulkhead Fitting has an outside dimension of 2.38" across flats and overall length of 2.88". Maximum tank wall thickness is 1.08". Minimum flexible tank radius is 9.25" and minimum rigid tank radius 10.00". Hole size required is 1.63".
- Polypropylene, PVC or CPVC with EPDM gasket
- EPDM gaskets
- PVC & PP are FNPT x FNPT; CPVC are Socket x FNPT
- Buttress threads protect against blowout
- Hex body for one-person installation
- Left-hand threads
- Maximum pressure: 150 psi
- Temperature range: 60°F to 200°F (PP)
