150 Gallon Conical Bottom Tank And Stand 31" x 63" w/19° Cone Angle

Item #: 14261


Buy in Quantity & Save!

2-3$815.28Save 5%
4-11$772.37Save 10%
12+$729.46Save 15%

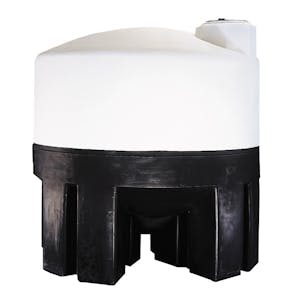

This 150 gallon cone bottom tank with polyethylene stand is 31" in diameter and 63" in height with a 19° cone angle. There is 11" of clearance between bottom of cone and floor. Tank comes with a 1-1/2" FPT tank fitting with EPDM gasket installed in the bottom and has an 8" manway in the top.

  • UV resistant HDPE
  • Translucent & graduated for monitoring level of liquid
  • Excellent chemical & impact resistance
  • 16" manway on all sizes
  • 300 to 500 gallon tanks have EPDM gaskets
  • 750 gallon & larger tanks have Viton™ gaskets
  • Maximum specific gravity: 1.5 at 73°F
  • Maximum temperature: 140°F
  • Meets FDA standards

Item Information

Item Number: 14261
Catalog Page Number: P-273
Manufacturer Part #: TC3166JP
Country of Origin: USA

Tech Specs

Material: HDPE
Style: Cone Bottom
Capacity: 150 Gallon
Weight: 100 lbs
