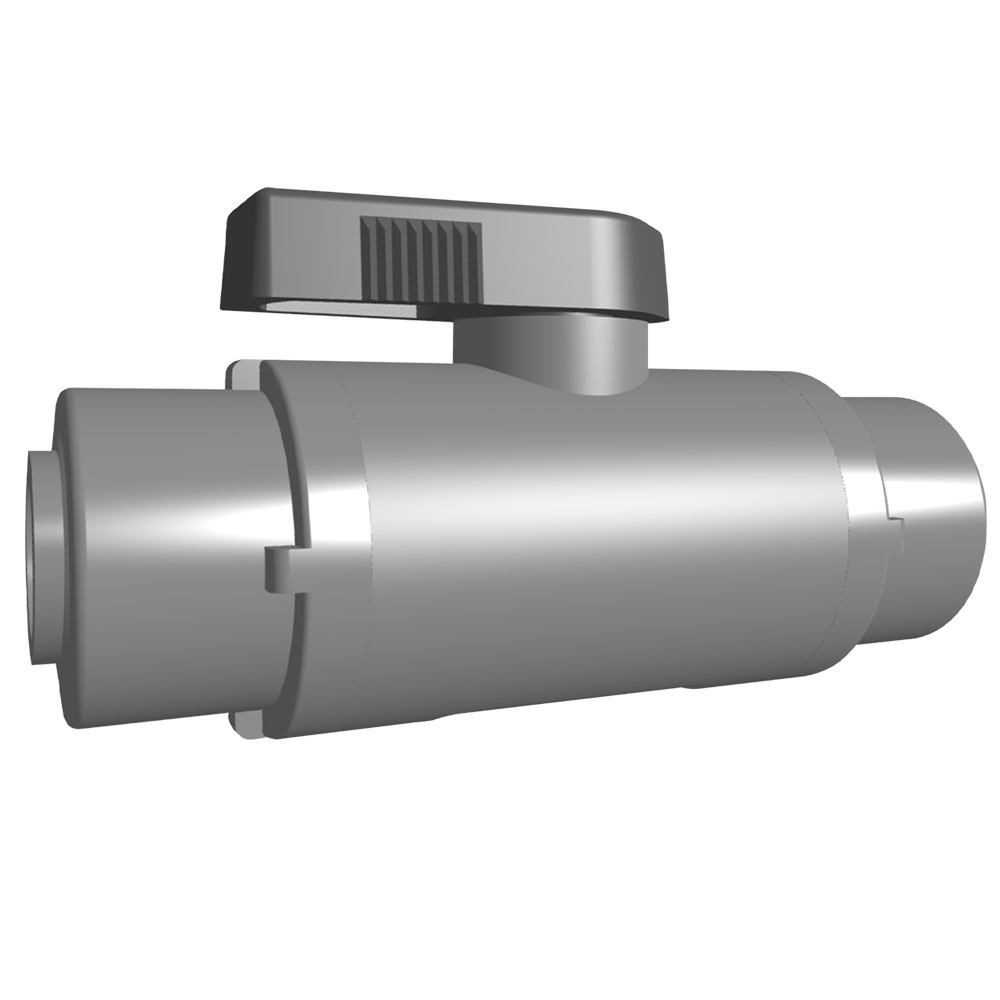

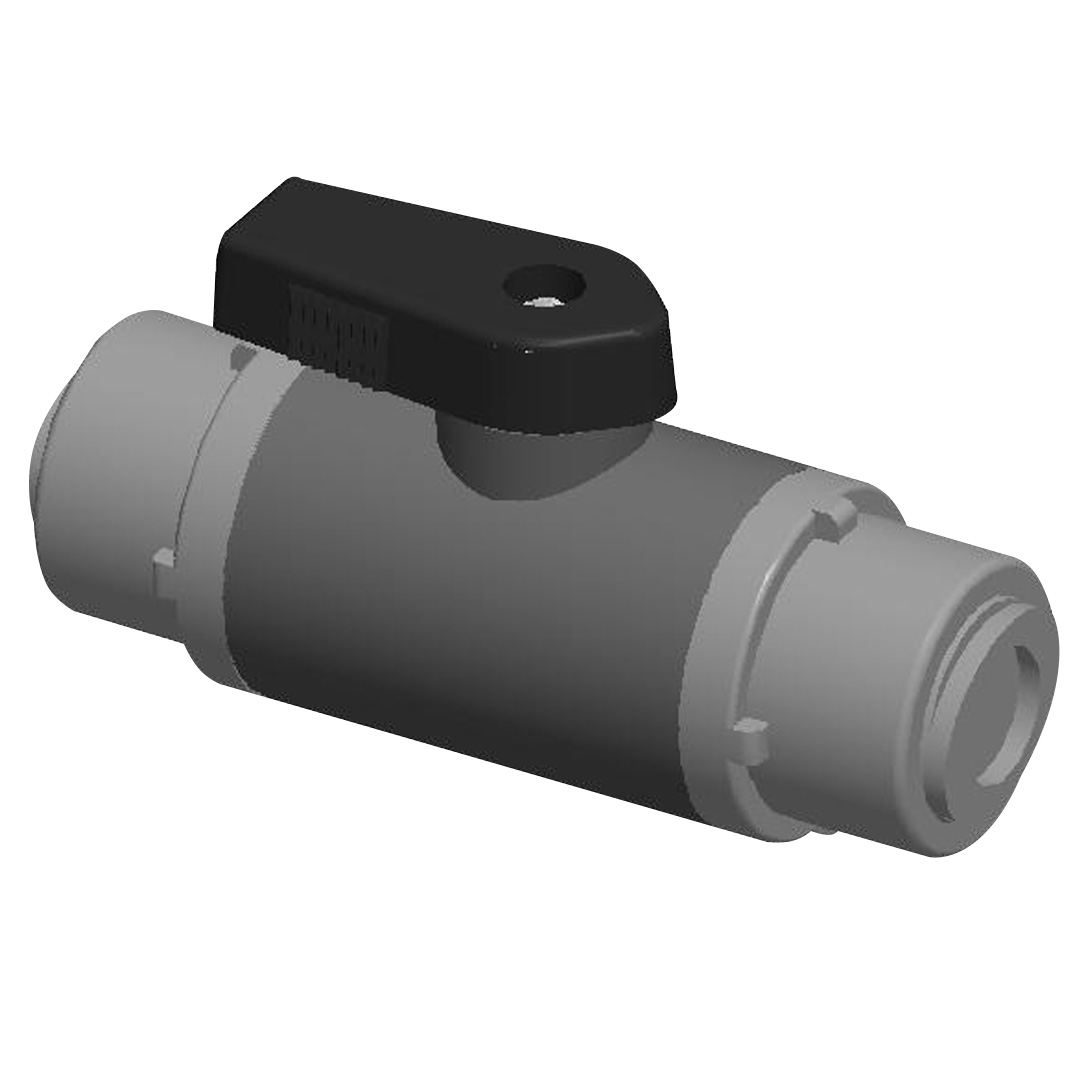

3/8" OD Push-To-Connect x 3/8" OD Push-To-Connect Series 638 Straight Polypropylene Ball Valve with FKM Seal

Item #: 22684

$12.49/Each

This item is not currently available. Please check back later or fill out our Information Assistance form for an estimate of when it will be back.

Overview

These valves are available in multiple configurations to fit the exact end-use application. They are economical shut-off valves that offer superior quality and dependability to be used in ultra-pure water systems, photographic processing equipment, laboratory use, and more.

  • Polypropylene
  • FKM seal
  • Two-way flow, one-piece ball & stem
  • Fully ported, quarter-turn handle, with positive shut-off
  • .437" diameter through hole in ball
  • Not for vacuum
  • Maximum pressure: 125 psi
  • Maximum temperature: 140°F

Item Information

Item Number: 22684
Catalog Page Number: P-444
Manufacturer: SMC
Manufacturer Part #: 7618890
Country of Origin: USA

Tech Specs

Weight: 0.056 lbs
