1/4" Clear RPVC Living Hinge
1/4" Clear RPVC Living Hinge

1/4" Clear RPVC Living Hinge

Item 92647
10.73/6' Length

Buy in Quantity & Save!

5% off at 8+10.1935/6' Length
10% off at 16+9.657/6' Length
15% off at 48+9.1205/6' Length

Overview

Living hinge is a continuous, coextruded thermoplastic hinge combining the toughness of RPVC wings with a polyester thermoplastic hinge membrane for complete flexibility and long life. Designed for easy assembly by mechanical fastening or gluing, this hinge has been tested for over 1,000,000 flexes without failure or fatigue. Compared to metal hinges, plastic hinges are lightweight, non-corrosive, less expensive, less noisy, and have a greater range of movement. The DR Channel hinges have two c-type cross-sections linked with flexible hinge sections. The hinges are used in a variety of applications, including sneeze guards, desk separators, dividers, supermarket food bin covers, store displays, aircraft storage doors, and home cabinetry. They are also used throughout the medical field, automotive industry, and the military, where long life and resistance to harsh environments are essential.

  • Clear RPVC wings
  • TPE Hytrel® hinge membrane
  • White web in the middle divider
  • Flexible, durable & cost-effective
  • Chemical resistant
  • Performs particularly well in critical areas like refrigerators & freezers
  • Offers 180° to 360° rotation

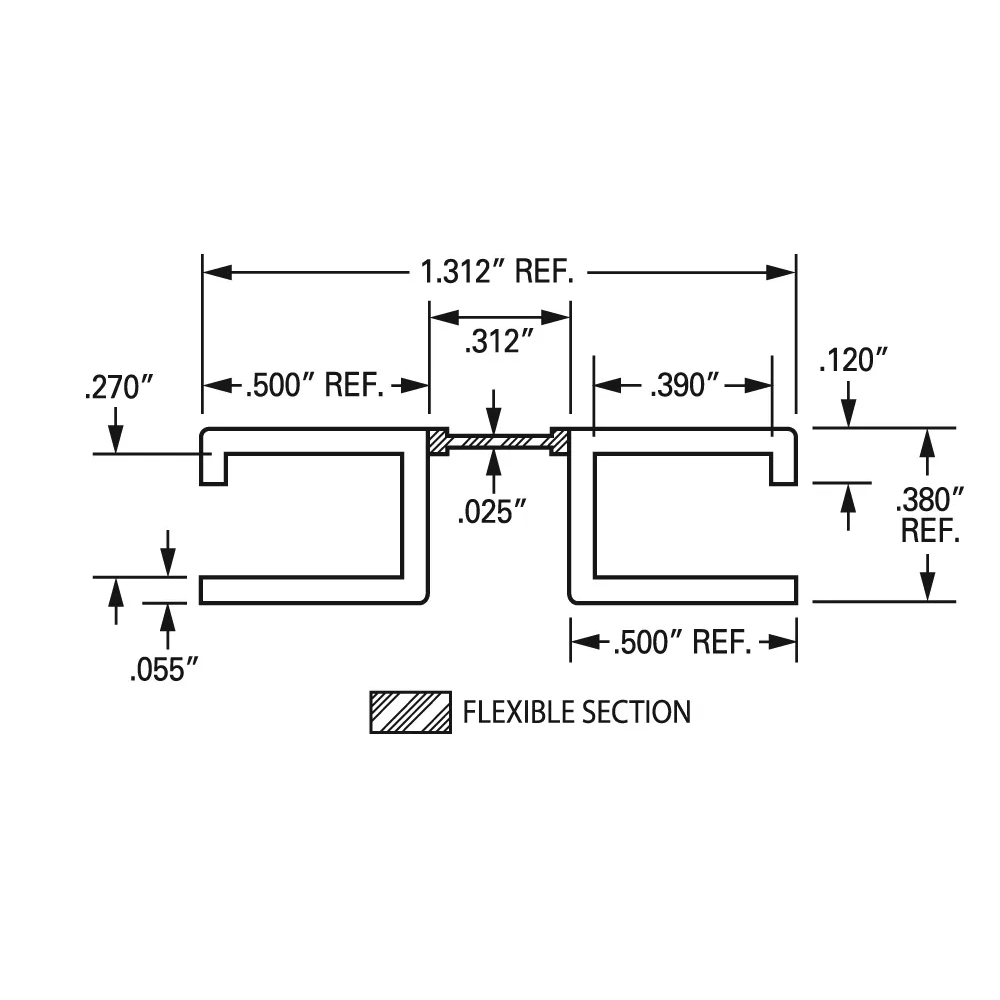

  • Dimensions: 1.312" W x 0.38" Hgt. x 0.055" Thickness
  • Min. temperature: -40°F
  • Sold in 6' lengths

Item Information

Item Number: 92647
Catalog Page Number: NEW
Manufacturer Part #: J-602
Country of Origin: USA

Tech Specs

Weight: 0.5 lbs
