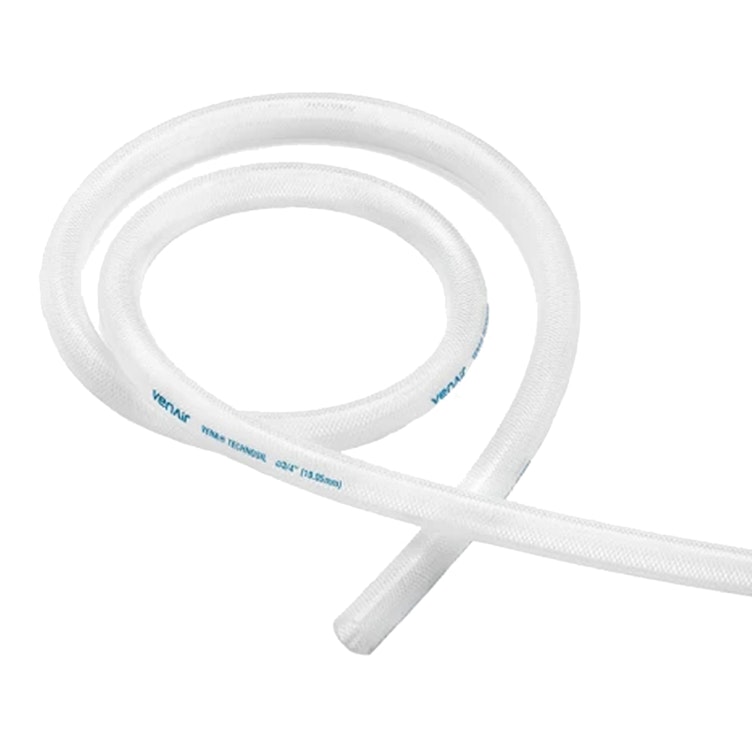

Vena® Technosil DB is a platinum-cured silicone hose reinforced with double-braided polyester. It is engineered for the safe and efficient transfer of liquids and semi-liquids in the food, pharmaceutical, cosmetic, and chemical industries. Due to its double reinforcement, it can be used in filling processes with high pressure, low vacuum, and many other applications.
- VMQ silicone inner & outer layer with double-braided polyester reinforcement
- Translucent & smooth inner & outer layers; White reinforcement layer
- Odorless, tasteless & completely non-toxic
- Vacuum rating: 14.5 psi
- Max. working pressure @ 68°F: 331.37 psi; Burst pressure @ 68°F: 994.1 psi
- Bend radius: 1.48"; Wall thickness: 0.20"
- Temperature range: -75°F to 356°F (-60°C to 180°C) continuous; Up to 392°F (200°C) intermittent
- Meets FDA & USP Class VI standards
- Sold in full rolls only (20m=65.6', approximately)
