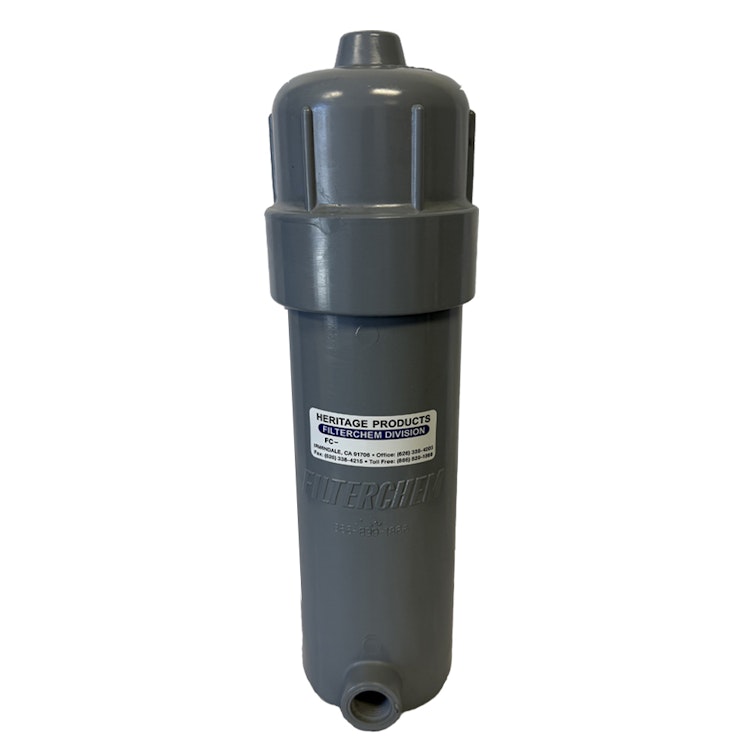

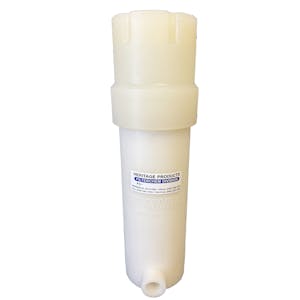

Single Tube Chambers are designed to hold wound filter cartridges and serve as the core housing that makes a filtration system function. They are available in PVC, CPVC, Polypropylene, and PVDF. They are available in 10", 20", and 30" sizes. Each unit is equipped with FPT side-by-side connections, with side-by-bottom connections available upon request. The 10" chambers feature 1/2" FPT inlet/outlet ports. In comparison, the 20" and 30" sizes have 3/4" FPT inlet/outlet ports. Used across various applications - from water to chemicals - these chambers provide reliable containment for cartridge filters, directing fluid through the filter media to remove contaminants. While suitable for residential and commercial systems, they are primarily designed for industrial use.
- PVC; FKM O-Ring
- ACME threads provide ease of element (filter) changes
- Inlet/Outlet ports located at the base allowing for easy, mess-free filter changes
- Chambers can be mounted in parallel for higher flow rates, or in a series for multi-step filtration
- Can be drained without having to remove cap
- Spring-load top eliminates filter bypass
- Working temp.: 32° to 140°F (PVC)
- Flow capacity: 2.5 to 5.4 GPM
