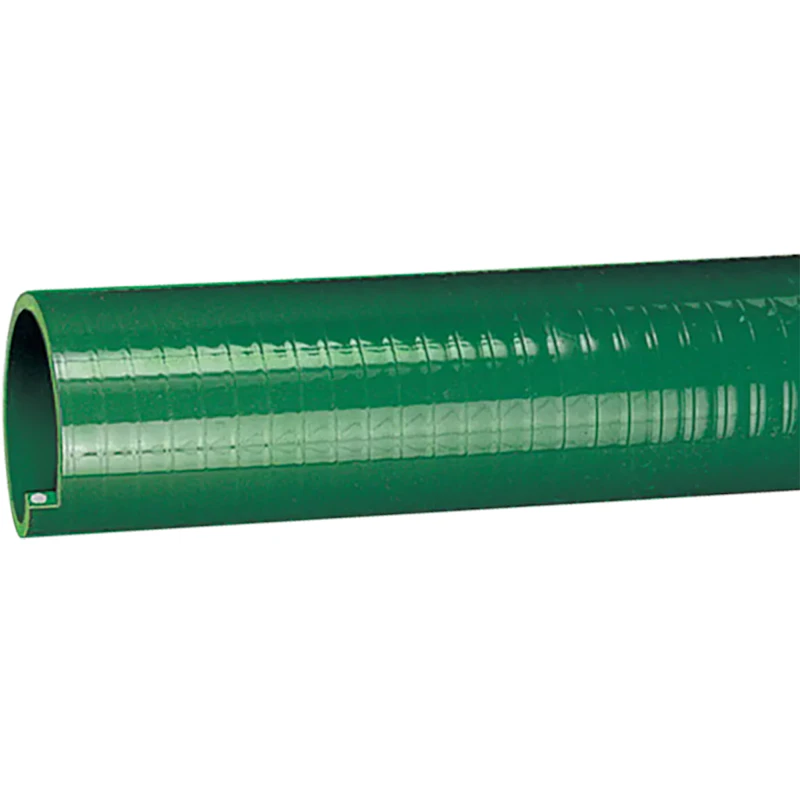

1-1/4" ID x 1.56" OD Tigerflex® J™ Series Flame-Resistant Standard-Duty Green PVC Suction Hose

Item 100574
208.46/100' Roll

Overview

Tigerflex® J™ Series Flame Resistant PVC Suction Hose delivers the same dependable performance and construction as the K Series, with the added benefit of a flame-resistant PVC compound for applications requiring increased fire safety. Constructed with a PVC tube reinforced by a rigid PVC helix, the hose provides excellent flexibility while maintaining dependable suction performance. Sizes 3/4" through 4" feature a smooth outer cover for improved pressure ratings and easier banding, making this hose ideal for agricultural liquid fertilizer, air seeder lines, drain lines, irrigation systems, mining, rental and construction dewatering pumps, trash pumps, rock dusting, and standard-duty water suction applications.

  • PVC hose with a rigid PVC helix
  • Flame-resistant
  • Smooth cover improves banding & pressure rating
  • Ideal for standard-duty water suction & transfer applications
  • Phthalate-free
  • Temperature range: -4°F to 150°F
  • Min. Bend Radius: 4"
  • Working pressure @ 68°F: 85 psi; Vacuum rating @ 68°F: 28" Hg
  • RoHS- & MSHA-compliant
  • Priced per roll; sold in 100' rolls - 100' standard length

Item Information

Item Number: 100574
Catalog Page Number: NEW
Manufacturer: Kuriyama
Manufacturer Part #: J125X100
Country of Origin: USA

Tech Specs

Weight: 35 lbs

Product testing for individual applications is recommended before use. U.S. Plastic Corp. cannot be held liable for individual application failures.
