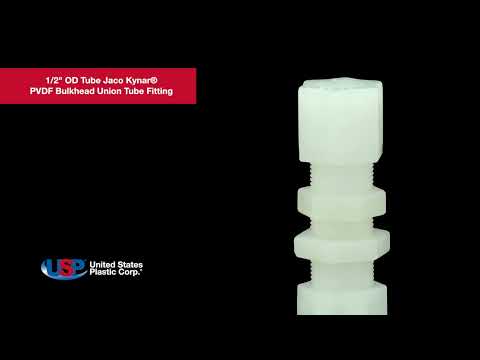

1/2" OD Tube Jaco Kynar® PVDF Bulkhead Union Tube Fitting

Item 61309
13/Each

Buy in Quantity & Save!

5% off at 100+12.35/Each
10% off at 200+11.7/Each
15% off at 600+11.05/Each

Overview

These compression style fittings are offered in three different resins for a range of applications dealing with temperatures, acids and chemicals. The Kynar® PVDF Jaco fittings are best when used with Kynar® PVDF, PTFE, FEP and PFA tubing. Each fitting is equipped with a plastic gripper for support and these fittings are UV resistant and resistant to many highly corrosive fluids.

  • Kynar® PVDF
  • Has a plastic gripper
  • Resistant to highly corrosive fluids & UV
  • Use Kynar® fittings with Kynar®, PTFE, FEP & PFA tubing
  • Dimensions: 1-7/8" L
  • Hex size: 15/16"
  • Ferrule nut thread: 3/4-20; thru hole size: 0.375"
  • Working pressure: 220 psi
  • Temperature range: -80°F to 275°F
  • Meets FDA standards & NSF listed

Videos

360 Video
360 Video

Item Information

Item Number: 61309
Catalog Page Number: P-250
Manufacturer: JACO
Manufacturer Part #: 20-8-K-PG
Country of Origin: USA

Tech Specs

Material: PVDF
Size: 1/2" x 1/2"
Configuration: Compression x Compression
Weight: 0.075 lbs
