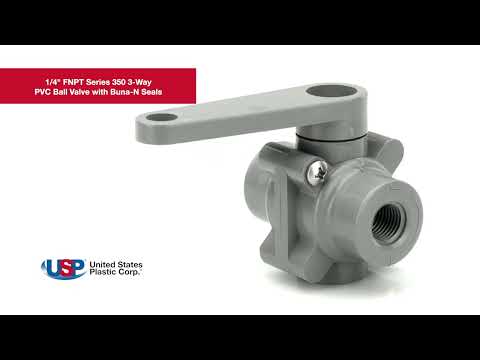

1/4" FNPT Series 350 3-Way PVC Ball Valve with Buna-N Seals

Item #: 22151

$28.53/Each
Add to Cart

Buy in Quantity & Save!

5% off at 12+$27.10/Each
10% off at 24+$25.68/Each
15% off at 72+$24.25/Each

Overview

The 350 Series Three-Way Ball Valve design promotes multiple configurations to fit the exact end use application. The bottom port is common and the 350 Series valve can be used as a diverter or selecting valve. The handle has 180° rotation and lies over the open port. When the handle is rotated 90° from either port, flow is shut off to both ports.

  • PVC
  • Buna-N seals
  • Good chemical resistance
  • Lever handle
  • .437" diameter through hole in ball
  • Not for vacuum
  • Maximum pressure: 125 psi
  • Maximum temperature: 140°F
  • Dimensions: 2.22" L x 2.33" Hgt.

Item Information

Item Number: 22151
Catalog Page Number: P-446
Manufacturer: SMC
Manufacturer Part #: 2363590
Country of Origin: USA

Tech Specs

Size: 1/4"
Material: PVC
Seal: Buna-N
Connection: FNPT x FNPT x FNPT
Weight: 0.2 lbs
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
