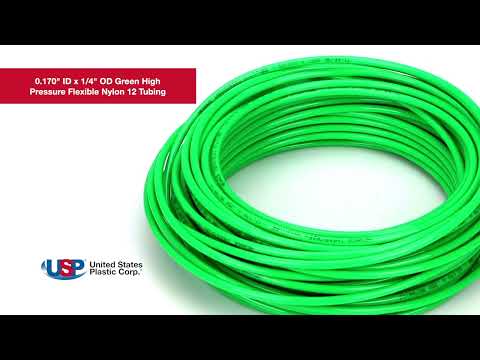

.170" ID x 1/4" OD Green High Pressure Flexible Nylon 12 Tubing

Item #: 36153
In Stock
$51.04/100' Roll

Buy in Quantity & Save!

2-3$48.49Save 5%
4-11$45.94Save 10%
12+$43.38Save 15%

Overview

This .170" ID x 1/4" OD with .040" wall thickness Green Nylon High Pressure Flexible Tubing has a working pressure of 450 psi @ 70°F and a burst pressure of 1350 psi @ 70°F. It has a minimum bend radius of 1/2". It is sold in 100' rolls and weighs 1.15 lbs. per 100'.

  • Low moisture absorption: 1.4% max. at 73°F
  • Will not embrittle or swell because of water
  • Lightweight & resistant to flex fatigue
  • Excellent bend radii & pressure rating
  • Resists crushing, abrasion & cracking
  • Heat & light stabilized
  • Durometer hardness: 63 Shore D
  • Temperature range: -94°F to 158°F
  • REACH & RoHS compliant
  • Sold in full rolls only

Item Information

Item Number:36153
Catalog Page Number:P-127
Weight:1.195
Manufacturer:NewAge®
Manufacturer Part #:2340884-100

Tech Specs

Material: Nylon
Color: Green
OD: 1/4"/.250"
ID: .170"
Wall: .040"
