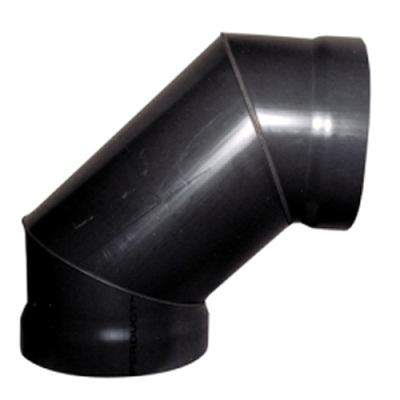

These corrosion-proof 18" CPVC 90° Elbows are for the construction of exhaust ventilation systems. CPVC material compounds used in the manufacture of these duct fittings conform to Type VI, Grade 1 CPVC, Cell Class 23447 as described in ASTM D-1784. These elbows are a three piece design which is considered standard and are furnished with a centerline radius approximately 1-1/2 times the duct diameter.
- Centerline to end is 19.062" and socket depth is 2.5"
- Maximum service temperature is 200°F
- NOTES: Fittings are triple bead welded
- Pictures are to represent style of fittings only; actual color is light gray
