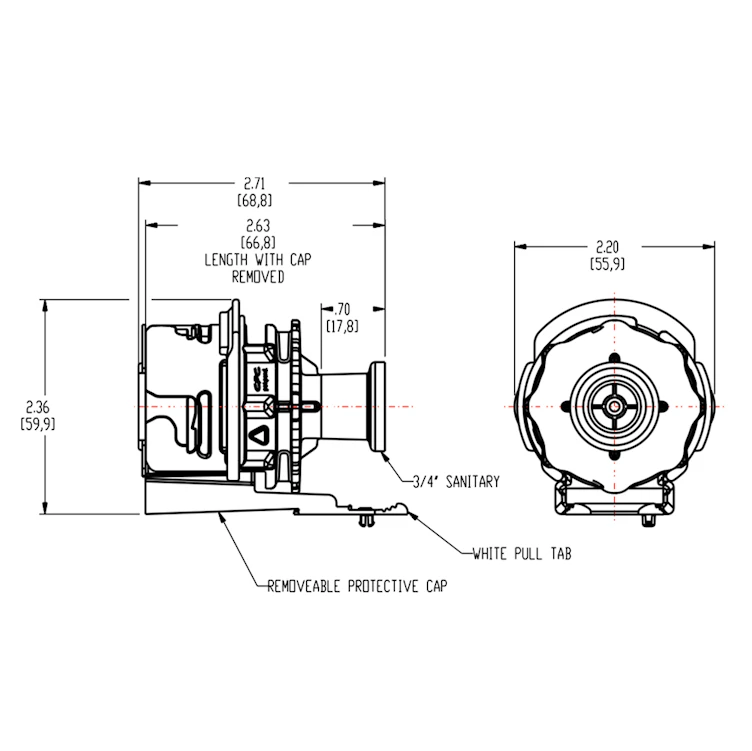

3/4" Sanitary AseptiQuik® High Temperature Coupling Body (Insert Sold Separately)
3/4" Sanitary AseptiQuik® High Temperature Coupling Body (Insert Sold Separately)

3/4" Sanitary AseptiQuik® High Temperature Coupling Body (Insert Sold Separately)

Item #: 61607

$56.64/Each

Buy in Quantity & Save!

2-3$53.81Save 5%
4-11$50.98Save 10%
12+$48.14Save 15%

Overview

AseptiQuik Connectors provide quick and easy sterile connections, even in non-sterile environments. AseptiQuik's "CLICK-PULL-TWIST" design enables users to transfer media easily with less risk of operator error with its intuitive three-step process. The connector's robust design provides reliable performance without the need for clamps, fixtures or tube welders. 1. Align male and female couplings, push together until "Colder Click" confirmation. Slight rotation of lock ring may be required for proper alignment prior to connection. 2. Snap membrane, pull tabs together and pull from connector. 3. Twist the blue lock ring Clock-wise until "Colder Click" and rib to arrow alignment confirms secure final connection. Biopharmaceutical manufacturers can make sterile connections with the quality and market availability they expect from the leader in single-use connection technology. Non-returnable

  • White polycarbonate
  • Clear, platinum-cured silicone
  • Clear polypropylene caps
  • High temp version has hydrophobic polyethersulfone membrane
  • Gamma: up to 50kGy irradiation
  • Autoclave High Temp Version: up to 266°F for 30 minutes
  • Pressure rating: up to 60 psi, 4.1 bar
  • Temperature: 39°F to 104°F (1°C to 40°C)
  • Meets USP Class VI & ADCF requirements

Item Information

Item Number: 61607
Catalog Page Number: Internet Only
Manufacturer: CPC™
Manufacturer Part #: AQC33012HT
Country of Origin: USA

Tech Specs
